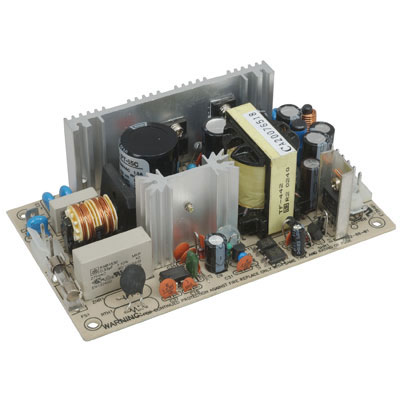

MEAN WELL PT-65A AC to DC Switching Open Frame Power Supplies

MEAN WELL Rohs logo
PT-65A Open Frame

View larger image

  • AC to DC Power Supply Open Frame Triple Output 5 Volt 12 Volt 5 Volt 7 Amp 3.2 Amp 0.7 Amp 60 Watt
  • Jameco Part no.: 2106108
  • Manufacturer: MEAN WELL
  • Manufacturer p/n: PT-65A
  • NCNR (Non-Cancelable, Non-Returnable)
  • HTS code: 8504.40.9520

$$ Lowest Prices on MEAN WELL

You May Also Like
PT-45B PT-45B
MEAN WELL
$17.50
PD-2512 PD-2512
MEAN WELL
$15.80
PD-45A PD-45A
MEAN WELL
$16.00
PD-45B PD-45B
MEAN WELL
$16.00
PD-65A PD-65A
MEAN WELL
$17.90
PD-65B PD-65B
MEAN WELL
$17.90

$19.20 ea

3 Weeks Lead Time

*This product is subject to a tariff. See detail in the cart.

+ Add to my favorites
# of units Price
1+ $19.20
5+ $18.30
10+ $17.50
20+ $17.00

Request Larger Quantity Quote

65W Triple Output Switching Power Supply


CH1: 5 Volts @ 5.5 Amps
CH2: 12 Volts @ 2.5 Amps
CH3: -5 Volts @ 0.5 Amps

Features:
  • Universal AC input/Full range
  • Low leakage current<0.5mA
  • Protections: Short circuit / Overload / Over voltage
  • Cooling by free air convection
  • 100% full load burn-in test
  • Fixed switching frequency at 65KHz
  • 2 years warranty



Report a problem
Suggest a product

Specification Value
Number of Outputs3
Output Voltage5 VDC
Output Current7 A
Additional Output Voltages (VDC)12 , -5
Input Voltage90 VAC to 264 VAC
Input Frequency47 Hz to 440 Hz
Output Connector TypeMolex 5273-06
PFC FunctionNo
Agency ApprovalsUL, CUL, TUV, CB, CE, EN, EAC
Efficiency76%
Manufacturer SeriesPT-65
Power Rating60 W
Maximum Input Current1.5 A
Minimum Operating Temperature-10°C
Maximum Operating Temperature60°C
Minimum Isolation Voltage3000V
SwitchingAuto Switching SMPS
StyleOpen Frame
Length5 in.
Width3 in.
Height1.70 in.
ComplianceCompliance Docs
