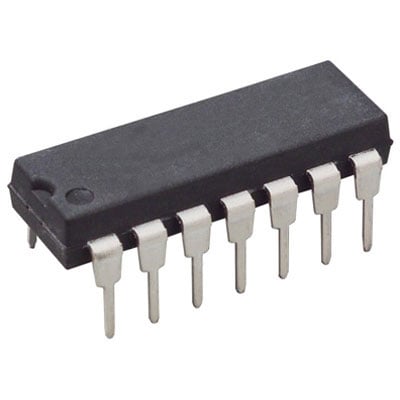

Texas Instruments SN74HC14N CMOS Logic 74HC Series

Texas Instruments Rohs logo
SN74HC14N 74HC Series

View larger image

  • IC 74HC14 Hex Inverting Schmitt Trigger
  • Jameco Part no.: 45364
  • Manufacturer: Texas Instruments
  • Manufacturer p/n: SN74HC14N
  • HTS code: 8542.39.0090
You May Also Like
MM74C14N MM74C14N
National Semiconductor
$4.25
74HCT14 74HCT14
Texas Instruments
$0.85
SN74LS14N SN74LS14N
Texas Instruments
$0.79
SN7414N SN7414N
Texas Instruments
$2.05
74HC00 74HC00
Major Brands
$0.69
74HC02 74HC02
Major Brands
$0.69
74HC04 74HC04
Major Brands
$0.69
74HC08 74HC08
Major Brands
$0.69

$0.79 ea

457 In Stock
More Available – 7 weeks

+ Add to my favorites
# of units Price
1+ $0.79
10+ $0.69
100+ $0.59
1000+ $0.49

Request Larger Quantity Quote

Hex Inverting Schmitt Trigger

The 74HC14 utilizes advanced silicon-gate CMOS technology to achieve the low power dissipation and high noise immunity of standard CMOS, as well as the capability to drive 10 LS-TTL loads. The 74HC logic family is functionally and pinout compatible with the standard 74LS logic family. All inputs are protected from damage due to static discharge by internal diode clamps to VCC and ground.

Features

  • Typical propagation delay: 13 ns
  • Wide power supply range: 2 - 6V
  • Low quiescent current: 20 µA maximum (74HC Series)
  • Low input current: 1 µA maximum
  • Fanout of 10 LS-TTL loads
  • Typical hysteresis voltage: 0.9V at VCC = 4.5V


Report a problem
Suggest a product
Specification Value
PackageDIP-14
Pins14
