Operating Temperature: -40°F to +221°F (-40°C to +105°C)
Color: Black (BK)
Storage Conditions: Store in a sealed package. Avoid direct heat sources and sunlight. Ideal storage conditions: 73°F (22.8°C), 50% RH
Use Conditions: For Indoor and Outdoor Use
Bundle Diameter Max. (Imperial): 0.3"
Bundle Diameter Max. (Metric): 7.7 mm
Bundle Diameter Min. (Imperial): 0.28"
Bundle Diameter Min. (Metric): 7.2 mm
Diameter Max. (Imperial): 0.303"
Diameter Max. (Metric): 7.7 mm
Diameter Min. (Imperial): 0.282"
Diameter Min. (Metric): 7.16 mm
Fixation Method: Plug-in mounting
Variant: Closed
Wall Thickness WT (Imperial): .042"
Wall Thickness WT (Metric): 1.111 mm
Width W Max. (imperial): 0.497"
Width W Max. (metric): 12.62 mm
Width W Min. (imperial): 0.416"
Width W Min. (metric): 10.57 mm
Width W2 (Imperial): 0.15"
Width W2 (Metric): 3.81 mm
CE Certified: No
CSA Certified: No
Flammability: UL 94 HB
Prop65 Warning: No
REACH Conformity: No
ROHS Compliant: Yes
UL Listed (US): No
UL Listed (US and Canada): No
UL Recognized (US): No
UL Recognized (US and Canada): No
UV Resistant (Yes/No): No
UPC: 089306050766
Overview

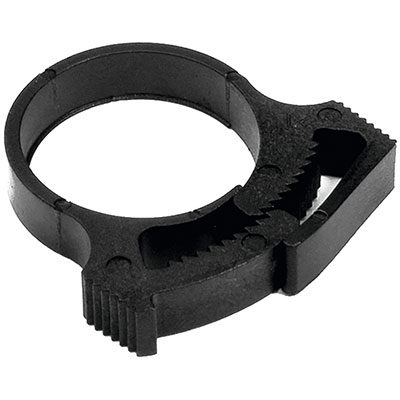

The Snapper Hose Clamp features a ratchet-style closure for reduced assembly time. It can be added after connection of the hose. Release by sliding the ratchet ends apart. Snappers can be used in under-hood applications and are stable in a wide variety of chemicals including salts, bases, alcohols, ethers, detergents, gasoline, lubricating oils and greases. They are manufactured in black PA66 glass filled, impact modified, heat stabilized material. Custom design and color options are available based upon application and volume requirements.
