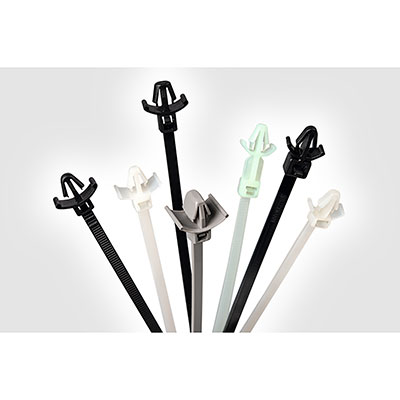

HellermannTyton T50SL7.NN6P Cable Ties

Cable Tie 1-Piece with Arrowhead Mount with Wings 6.5"L 50lb 0.27 - 0.28" Hole Dia PA66 Natural 500 per Bag

Features

• Two piece assembly allows the mount to slide along the strap ensuring proper orientation.
• Arrowhead style mount provides low insertion and high extraction force.
• Arrowhead disc protects against dirt and other impurities.
• Product Type: Arrowhead Mount Cable Ties

Technical Specifications

• Material: Polyamide 6.6 (PA66)
• Operating Temperature: -40°F to +185°F (-40°C to +85°C)
• Color: Natural (NA)
• Storage Conditions: Store in a sealed package. Avoid direct heat sources and sunlight. Ideal storage conditions: 73°F (22.8°C), 50% RH
• Use Conditions: For Indoor Use Only
• Bundle Diameter Max. (Imperial): 1.34"
• Bundle Diameter Max. (Metric): 34.0 mm
• Bundle Diameter Min. (Imperial): 0.06"
• Bundle Diameter Min. (Metric): 1.5 mm
• Cable Tie Closure: plastic pawl
• Disc Diameter (Imperial): 0.73"
• Fixation Method: Arrowhead
• Focused Markets and Industries: Solar Energy Sector; Wind Energy Sector; Rail Transportation Sector; Automotive Industry; Electronics Industry; Shipbuilding; Defense Industry
• Height H (Imperial): 0.4"
• Height H (Metric): 10.0 mm
• Length L (Imperial): 6.5"
• Length L (Metric): 165 mm
• Mounting Hole Diameter D (Imperial): 0.27 - 0.28"
• Mounting Hole Diameter D (Metric): 6.9 - 7.1 mm
• Mounting Hole Diameter D Max. (Imperial): 0.28"
• Mounting Hole Diameter D Max. (Metric): 7.1 mm
• Mounting Hole Diameter D Min. (Imperial): 0.27"
• Mounting Hole Diameter D Min. (Metric): 6.9 mm
• Mounting Hole Shape: Round
• Panel Thickness (Imperial): 0.03 - 0.10"
• Panel Thickness (Metric): 0.8 - 2.5 mm
• Panel Thickness Max. (Imperial): 0.10"
• Panel Thickness Max. (Metric): 2.5 mm
• Panel Thickness Min. (Imperial): 0.03"
• Panel Thickness Min. (Metric): 0.8 mm
• Recommended Application Tool: 110-03500; 110-05005; 110-06000; 110-07000; 110-07101; 110-70083; 110-70084; 110-80000; 110-80001
• Releasable Closure: No
• Tensile Strength Min. (Imperial): 50 lbs
• Tensile Strength Min. (kgf): 22.94 kgf
• Tensile Strength Min. (Metric): 225 N
• Thickness T (Imperial): 0.05"
• Thickness T (Metric): 1.2 mm
• Toothing (Serration): Inside Serrated
• Variant: Inside Serrated
• Width W (Imperial): 0.18"
• Width W (Metric): 4.6 mm
• CE Certified: No
• CSA Certified: No
• Flammability: UL 94 V-2
• Hazardous Goods: No
• Prop65 Warning: No
• REACH Conformity: Yes
• ROHS Compliant: Yes
• UL Listed (US): No
• UL Listed (US and Canada): No
• UL Recognized (US): No
• UL Recognized (US and Canada): No
• UV Resistant (Yes/No): No
• UPC: 089306207566

Overview

Wing design helps stabilize the tie in high vibration applications. One-piece mounting ties offer a complete solution by both bundling cable and simultaneously providing a mounting solution. HellermannTyton's one-piece mounting ties offer the ideal combination of high specification materials and superior design to suit the mounting and bundling needs of complex applications.
