Switch Components TA1-1D-DC-1 Toggle Switches

Switch Components Rohs logo

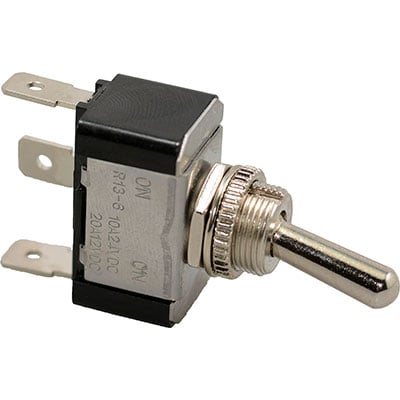

TA1-1D-DC-1 Toggle

View larger image

  • SPDT Toggle Switch ON-ON 10A 24VDC Rear Panel Mount 0.250 Quick Connect
  • Jameco Part no.: 2337951
  • Manufacturer: Switch Components
  • Manufacturer p/n: TA1-1D-DC-1
  • HTS code: 8536.50.9031

PRICED TO MOVE

CLOSEOUT

You May Also Like
MTS-103 MTS-103
Jameco ValuePro
$1.29
T203T1B1A1QN T203T1B1A1QN
Jameco ValuePro
$2.25
66-1205 66-1205
Jameco ValuePro
$2.25
T101T6B6A1QN T101T6B6A1QN
Jameco ValuePro
$1.95
T203T6B6A1QN T203T6B6A1QN
Jameco ValuePro
$2.25
T103T1B1A2QN T103T1B1A2QN
Jameco ValuePro
$1.95
Closeout

$2.95 ea

100 In Stock

+ Add to my favorites
# of units Price
1+ $2.95
10+ $2.69
50+ $2.49
100+ $2.25

Request Larger Quantity Quote

SPDT Toggle Switch ON-ON 10A 24VDC Rear Panel Mount 0.250 Quick Connect

Specifications

  • Series: TA1
  • Mounting Type: Panel Mount
  • Circuit: SPDT
  • Switch Function: On-On
  • Current Rating: 10 A
  • Voltage Rating: 24 VDC
  • Actuator Type: Standard Round
  • Actuator Length: 15.90mm
  • Termination Style: Quick Connect - 0.250" (6.3 mm)
  • Panel Cutout Dimensions: Circular - 12.20 mm Dia
  • Bushing Thread: M12 x 0.75
  • Ingress Protection: N/A
  • Operating Temperature: 0°C to 65°C
  • Actuator Material: N/A
  • Electrical Life: 6,000 Cycles


Report a problem
Suggest a product
Specification Value
Contact FormSPDT
Switch FunctiONON-ON
Contact Rating20A @ 12VDC, 10A @ 24VDC
Mounting HoleCircular - 12.20mm Dia
Actuator TypeStandard Round
Termination StyleQuick Connect - 0.250" (6.3mm)
Pins3
Current Rating20 A
Voltage Rating12 VDC
Power RatingN/A
Body ColorBlack
Color - Actuator/CapChrome
Illumination TypeN/A
Number of Positions2
Mounting StylePanel, Rear
IP RatingN/A
UL Flammability CodeN/A
Length1.13 in.
Width0.63 in.
Depth1.15 in.
Height0.98 in.
Actuator Length0.63 in.
Additional FeatureKeyway
Contact PlatingN/A
Mechanical LifeN/A
Actuator MaterialN/A
Body MaterialN/A
Body OrientationStraight
Bushing TypeThreaded
Dielectric Strength1500V
Electrical Life6000 Cycles
Housing MaterialN/A
Maximum Contact Resistance50mOhm
Minimum Insulation Resistance100MOhm
Seal DescriptionN/A
Seal LocationN/A
Thread SizeM12 x 0.75
