HellermannTyton TAG3-100

Dot Matrix Label Self-Laminating 1.0 x 1.0 x 3.75" 8 Across VL White 2500 per Package

Features

• Dot matrix printable self-laminating vinyl has a smooth surface, allowing for the highest resolution and print contrast using an impact printer.
• The material is a conformable vinyl, allowing it to wrap and stay around wires and cable.
• The acrylic-based adhesive bonds to a wide variety of substrates and will remain in place long term.
• Tabtag dot matrix labels are specifically made for use in dot matrix printers for fast and easy printing.
• Labels come with a pin-feed margin to ensure that they can easily be loaded into any dot matrix printing system.
• Product Type: Labels for Dot Matrix Printers

Technical Specifications

• Material: Type 100B, Vinyl, white transparent, self-laminating (100B)
• Operating Temperature: -51°F to +200°F (-46°C to +93°C)
• Color: White (WH); Clear (CL)
• Storage Conditions: Store in a sealed package. Avoid direct heat sources and sunlight. Ideal storage conditions: 73°F (22.8°C), 50% RH
• Use Conditions: For Indoor and Outdoor Use
• Adhesive: Acrylic
• Adhesive Operating Temperature: -40°F to +302°F (-40°C to +150°C)
• Bundle Diameter Max. (Imperial): 0.87"
• Bundle Diameter Max. (Metric): 22.20 mm
• Bundle Diameter Min. (Imperial): 0.44"
• Bundle Diameter Min. (Metric): 11.10 mm
• Color Marking Field: White (WH)
• Fixation Method: Pasting / Stick
• Height H2 (Imperial): 3.75"
• Height H2 (Metric): 95.25 mm
• Horizontal Repeat HR (imperial): 1.0"
• Horizontal Repeat HR (metric): 25.4 mm
• Installation Temperature: from +50°F (from +10°C)
• Labels per Column: 8
• Labels per Row: 8
• Labels per Sheet: 24
• Outside Diameter Max. (Imperial): 0.874"
• Outside Diameter Max. (Metric): 22.20 mm
• Outside Diameter Min. (Imperial): 0.437"
• Outside Diameter Min. (Metric): 11.1 mm
• Print Method: Dot-Matrix
• Printable Area Height (imperial): 1.0"
• Printable Area Height (metric): 25.40 mm
• Self adhesive (Yes/No): Yes
• Self laminating: Yes
• Thickness T (Metric): 75.0 µm
• Variant: Adhesive label
• Vertical Repeat VR (imperial): 4.0"
• Vertical Repeat VR (metric): 101.60 mm
• Width of Liner WL (imperial): 8.9"
• Width of Liner WL (metric): 228.60 mm
• Width W (Imperial): 1.0"
• Width W (Metric): 25.4 mm
• CE Certified: No
• CSA Certified: No
• Halogen Free: No
• Prop65 Warning: No
• REACH Conformity: Yes
• ROHS Compliant: Yes
• UL-File Number + Logo: MH18396 [RU]
• UL Listed (US): No
• UL Listed (US and Canada): No
• UL Recognized (US): Yes
• UL Recognized (US and Canada): No
• UV Resistant (Yes/No): Yes
• UPC: 089306094203

Overview

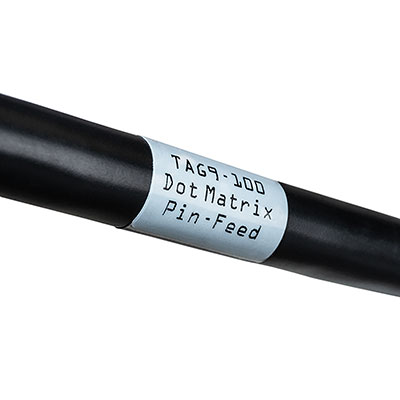

HellermannTyton’s self-laminating labels are used for marking wires and cable. The clear tail overlaps and protects the printed information from abrasion, chemicals and solvents and resists UV exposure. When printed using using any standard dot matrix printer, clear marking and high high-contrast imaging against the wire make this the perfect choice for durable identification.
