Laser Tag Label 2.0 x 0.275" 140 Per Sheet Polyester White 5000 per Package
Features
Laser printable white polyester has a smooth surface, allowing for the highest resolution and print contrast.
The acrylic-based adhesive bonds to a wide variety of substrates and can withstand high temperatures long term.
Lasertags are not affected by the high heat required in a laser printer.
Product Type: Labels for Laser Printers
Technical Specifications
Material: Type 789, Polyester (789)
Operating Temperature: -40°F to +300°F (-40°C to +149°C)
Color: White (WH)
Storage Conditions: Store in a sealed package. Avoid direct heat sources and sunlight. Ideal storage conditions: 73°F (22.8°C), 50% RH
Use Conditions: For Indoor Use Only
Adhesive: Acrylic
Adhesive Operating Temperature: -40°F to +302°F (-40°C to +150°C)
Height H (Imperial): .275"
Height H (Metric): 6.98 mm
Height H2 (Imperial): 0.275"
Height H2 (Metric): 6.98 mm
Horizontal Repeat HR (imperial): 8.50"
Horizontal Repeat HR (metric): 215.90 mm
Installation Temperature: +50°F (+10 °C)
Labels per Column: 35
Labels per Row: 4
Labels per Sheet: 140
Print Method: Laser
Printable Area Height (imperial): 0.275"
Printable Area Height (metric): 6.98 mm
Self laminating: No
Sheets per Pack: 36
Thickness T (Metric): 64.0 µm
Vertical Repeat VR (imperial): 0.275"
Vertical Repeat VR (metric): 6.98 mm
Width W (Imperial): 2.0"
Width W (Metric): 50.8 mm
CE Certified: No
CSA Certified: No
Halogen Free: Yes
Prop65 Warning: No
REACH Conformity: Yes
ROHS Compliant: Yes
UL Listed (US): No
UL Listed (US and Canada): No
UL Recognized (US): No
UL Recognized (US and Canada): No
UV Resistant (Yes/No): No
UPC: 089306250883
Overview

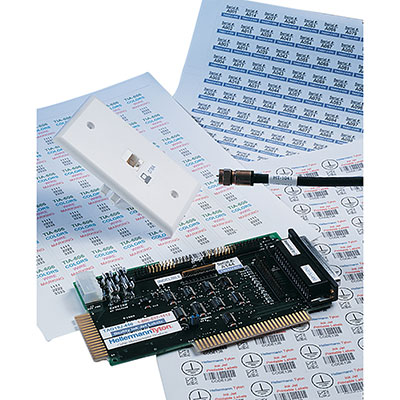

HellermannTyton white polyester labels are ideal for marking small electrical and electronic components, such as EPROMS’, Integrated circuits, as well as the circuit board itself. Printed labels can withstand the soldering process and survive flux removal when the board is washed. HellermannTyton’s 789 material is designed for use on flat surfaces and can also be used to identify connectors, buttons and just about anything requiring permanent, durable, high temperature and UV resistant marking.
