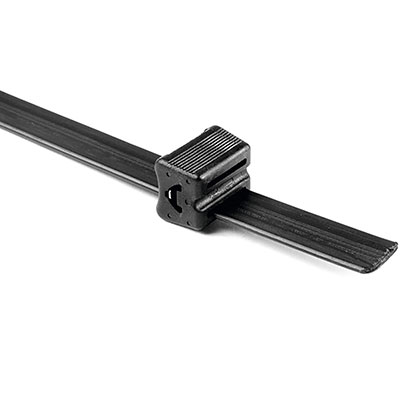

HellermannTyton TELS-13 Cable Ties

Extended-Length Tie 13.5"L Includes 10 Heads POM Black 10 per Package

Features

• Continuous strap and separate heads allow for any bundle diameter, eliminating waste.
• Smooth strap prevents cable damage.
• UV resistant materials contain an inhibitor which prolongs the life of the tie in outdoor environments.
• Product Type: Aerial Support

Technical Specifications

• Material: Polyacetal (POM)
• Operating Temperature: -40°F to +194°F (-40°C to +90°C)
• Color: Black (BK)
• Storage Conditions: Store in a sealed package. Avoid direct heat sources and sunlight. Ideal storage conditions: 73°F (22.8°C), 50% RH
• Use Conditions: For Indoor and Outdoor Use
• Cable Tie Closure: steel pawl
• Height H (Imperial): .49"
• Height H (Metric): 12.40 mm
• Length L (Imperial): 13.5"
• Length L (Metric): 343.0 mm
• Material Cable Tie: Polyacetal (POM)
• Material Head: Polyacetal (POM)
• Releasable Closure: No
• Tensile Strength Min. (Imperial): 250 lbs
• Tensile Strength Min. (kgf): 113.70 kgf
• Tensile Strength Min. (Metric): 1115 N
• Thickness T (Imperial): 0.06"
• Thickness T (Metric): 1.52 mm
• Toothing (Serration): Not Serrated
• Variant: Endless
• Width W (Imperial): 0.5"
• Width W (Metric): 12.7 mm
• Width W2 (Imperial): 0.8"
• Width W2 (Metric): 20.3 mm
• CE Certified: No
• CSA Certified: No
• Flammability: UL 94 HB
• Prop65 Warning: No
• REACH Conformity: No
• ROHS Compliant: Yes
• UL Listed (US): No
• UL Listed (US and Canada): No
• UL Recognized (US): No
• UL Recognized (US and Canada): No
• UV Resistant (Yes/No): No
• UPC: 089306096672

Overview

Extended Length Ties provide a high tensile strength strapping system consisting of a continuous strap and separate locking head making it suitable for any bundle diameter, eliminating waste. The smooth strap and specially designed heads with stainless steel pawls provide a strong grip on cables and wires without damage during vibration or in extreme environments. Spacers are available for dual bundle applications.
