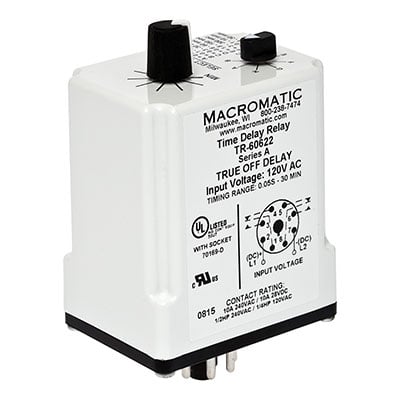

Macromatic TR-60622 Industrial Automation Time Delay Relays

Time Delay True Off delay 0.05sec - 30min 120VAC 10A DPDT

Features

• Family: TR-6
• Function: True Off Delay (This function has time range of 0.05 Sec – 30 Min)
• Output Configuration: DPDT
• Input Voltage: 120VAC/DC (applies to 606 function only)
• Function: TRUE OFF DELAY
• Function Name: True-Off-Delay
• Timing: PROGRAMMABLE
• Timing Range: 0.05 Sec. - 30 Min.
• Input: 120V AC/DC
• Output: 10A DPDT
• Voltage Tolerance: AC Operation: +10/-15% of nominal at 50/60 Hz.; DC Operation: +10/-15% of nominal.
• Insulation Voltage: 2,000 volts
• Load Burden: 2 VA
• Output Contacts: 10A @ 240V AC, 8A @ 28V DC, 1/2HP @ 240V AC, 1/4HP @ 120V AC, B300 & R300
• Life: Mechanical: 2000000 operations; Full Load: 100000 operations
• Temperature: -28° to 65°C (-18° to 149°F)
• Reset Time: 0.1 Seconds
• Repeat Accuracy (Constant Voltage and Temperature): +1% or 50ms whichever is greater
• Setting Accuracy: Maximum Setting (Adjustable): +5% -0%; Minimum Setting (Adjustable): +0% -50%.

Overview

Upon application of input voltage, the output is energized. When the input voltage is removed, the time delay (t) begins. At the end of the time delay (t), the output is de-energized. Input voltage must be applied for a minimum of 0.5 seconds to assure proper operation. Any application of the input voltage during the time delay (t) will reset the time delay. No external trigger is required.
