MEAN WELL XLC-25-H-KNS Constant Power LED Drivers

MEAN WELL Rohs logo

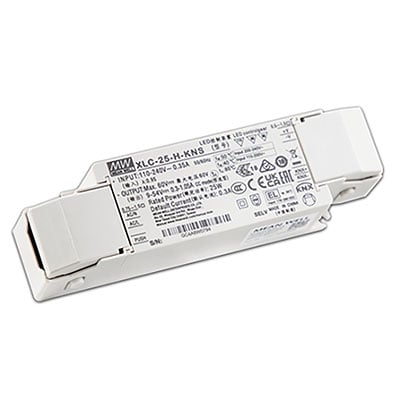

XLC-25-H-KNS Constant Power (CP)

View larger image

  • Multi-Stage Constant Power LED Driver 25W 300mA to 1050mA 9-54VDC with Strain Relief
  • Jameco Part no.: 2755919
  • Manufacturer: MEAN WELL
  • Manufacturer p/n: XLC-25-H-KNS
  • NCNR (Non-Cancelable, Non-Returnable)

$$ Lowest Prices on MEAN WELL

You May Also Like
PLN-100-48 PLN-100-48
MEAN WELL
$44.80
PLN-30-48 PLN-30-48
MEAN WELL
$34.95
PLN-60-48 PLN-60-48
MEAN WELL
$56.95
LPV-60-48 LPV-60-48
MEAN WELL
$14.80
PLC-30-48 PLC-30-48
MEAN WELL
$34.95
PLC-100-48 PLC-100-48
MEAN WELL
$44.70

$42.80 ea

2 Weeks Lead Time

*This product is subject to a tariff. See detail in the cart.

+ Add to my favorites
# of units Price
1+ $42.80
5+ $40.70
10+ $38.90
20+ $37.80

Request Larger Quantity Quote

Multi-Stage Constant Power LED Driver 25W 300mA to 1050mA 9-54VDC with Strain Relief

Features

  • Constant power mode output with multiple stage selectable by ETS database
  • Plastic housing with Class II and PFC design
  • Flicker free, complies with CE ErP directive
  • Standby power consumption <0.5W
  • Meets emergency lighting (EL) application
  • KNX/EIB protocol, support KNX data secure
  • Minimum dimming level 0.5%
  • Functions: operation hours, power consumption feedback, log/linear curve selection, and more
  • 5-year warranty

Overview

The XLC-25-KN series is a 25-watt LED driver with constant power output. It can operate from 100 VAC to 305 VAC input and output currents range between 300mA to 1050mA selectable by ETS database. The integrated KNX interface avoids using the complicated KNX-DALI gateway. Thanks to its high efficiency up to 88%, it is able to operate around -25°C to 85°C case temperature under free air convection. The XLC-25-KN is designed based on the latest safety regulations and provides more flexibility for LED lighting applications.

Applications

  • Recessed lights
  • Down lights
  • Panel lights
  • Commercial lighting
  • Decorative lighting
  • KNX digital lighting



Report a problem
Suggest a product
Specification Value
Output VoltageSee Output Range
Output Current1.05 A
Output Range9 VDC to 54 VDC
Input Voltage100 VAC to 305 VAC
Output Connector TypeScrew Terminal Block
Length5.79 in.
Width1.57 in.
Height1.26 in.
PFC FunctionYes
Agency ApprovalsCB, CE, EN, ENEC, EAC, CCC, UKCA, C-Tick, SELV
Power Rating25 W
Input Frequency47 Hz to 63 Hz
Maximum Input Current0.35 A
Efficiency88%
Minimum Isolation Voltage3750VAC
Minimum Operating Temperature-25°C
Maximum Operating Temperature85°C
Manufacturer SeriesXLC-25
Number of Outputs1
ColorWhite
Product TypeAuto Switching SMPS
StyleEnclosed
Output Voltage (Channel 1)9 VDC to 54 VDC
Output Current (Channel 1)0.30 A to 1.05 A
IP RatingN/A
ComplianceCompliance Docs
