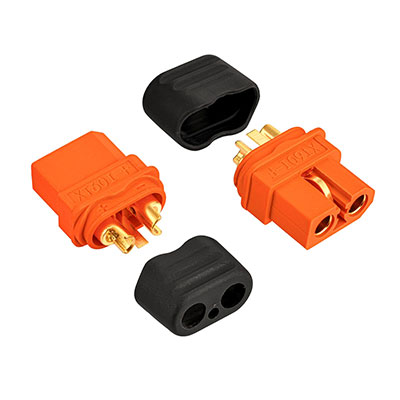

Amass XT60I-F.O DC Power Connectors

DC Supply Female Plug XT60 30A 500V Brass Gold-Flash Straight Cable Mount 12AWG Orange

Features

• Type of connector: DC supply
• Connector: plug
• Type of connector: female
• Manufacturer series: XT60
• Current rating: 30A
• Rated voltage: 500V
• Number of pins: 3 (2+1)
• Orientation: straight
• Mounting: flange (2 holes), for panel mount
• Electrical mounting: solder
• Contact material: brass
• Contact plating: gold flash
• Color: orange
• Flammability rating: UL94V-0
• Body material: polyamide
• Wire size: 12 AWG
• Mechanical durability: 1000 cycles
• Operating temperature: -20 to 120°C

Overview

DC Supply Female Plug XT60 (2+1) 30A 500V Brass Gold-Flash Straight Flange Mount 12AWG Orange.
