Adafruit Industries 1079 LED Displays Dot Matrix

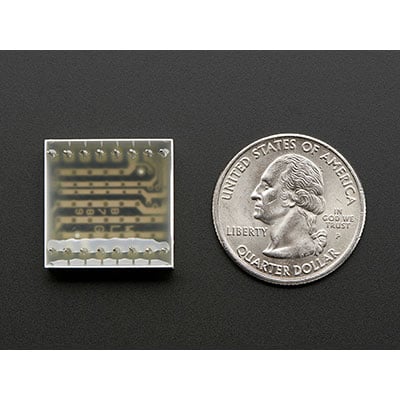

  • Miniature Ultra-Bright 8X8 White LED Matrix
  • Jameco Part no.: 2503967
  • Manufacturer: Adafruit Industries
  • Manufacturer p/n: 1079
  • NCNR (Non-Cancelable, Non-Returnable)
  • HTS code: 8541.41.0000
  • No datasheet available. Please review the tabs below for product specifications.
You May Also Like
TIL311 TIL311
Texas Instruments
$39.95
LTP-757G LTP-757G
Lite-On Electronics
$0.99
LD788BS-SS22 LD788BS-SS22
Jameco ValuePro
$2.95
420 420
Adafruit Industries
$43.55
607 607
Adafruit Industries
$42.55
SBM-2388ASRG-RG SBM-2388ASRG-RG
Super Bright
$0.99

$9.85 ea

1,954 ship on Oct. 2


# of units Price
2+ $9.85
10+ $9.35
50+ $8.25

Request Larger Quantity Quote

NOTE:
  • Order in multiples of 2

Miniature Ultra-Bright 8x8 White LED Matrix

Features

You will squeak with delight when you hold this adorable miniature LED matrix. 0.8" square, its got everything a big LED matrix has, but bite-sized! 64 bright white LEDs are contained inside the plastic body, in an 8x8 matrix. There are 16 pins on the side, 8 on each, with 0.1" spacing so you can easily plug it into a breadboard with plenty of space to wire it up

Since the display is in a grid, you'll need to 1:8 multiplex control it. We suggest either using a 74HC595 and TPIC6B595 (using the 74HC' to control the 8 anodes at once and then using the TPIC' to drive one cathode at a time) or just using a single MAX7219 which will do the multiplexing work for you.

The Arduino playground has a nice set of tutorials introducing the MAX7219 and 8x8 LED matrices
