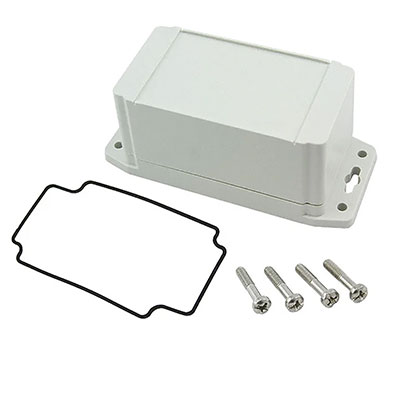

Type 4x & 6P ABS Plastic Watertight Enclosure with Flanged Lid Light Gray 120x66x62mm
Designed for harsh industrial environments or outdoor applications (security, outdoor wireless, controls etc. etc.)
Ideally suited for mounting printed circuit boards, panels or DIN rail mounted components (see photo features for details).
Designed for wall mounting. Interior is secure as lid screws are behind the lid. Can be made more secure if wall mounted with security screws (tamper resistant screws).
Satin texture finish with smooth recessed surface on lid for a membrane keypad or label
Standoffs molded in the interior of the lid & enclosure - designed for #4 x 1/4" self tapping screws (Hammond part number 1555TS100)
General purpose ABS plastic (material carries a UL flammability rating of UL94 HB). Not recommended for outdoor use.
Color is a light gray (RAL 7035) to help keep heat absorption down.
Gasketed lid with two piece "tongue & groove" construction provides protection against access of oil, dust and water.
Gasket is one piece made from high temperature, U.L. listed silicone.
Designed to meet NEMA Type 4, 4X, 6, 6P, 12 & 13 ratings which meet and exceed IP ratings up to and including IP68.
Flanged lid is secured with self captivating M4 stainless steel machine screws (included), threaded into integral stainless steel bushings for repetitive assembly & disassembly. All hardware is stainless steel to avoid corrosion caused by dissimilar metals.
Flanged lid screws are self captivating (lid holes are threaded with the first installation of lid screws).
Internal features are maximized for mounting options and vary with size:
Standoffs (#6 self tapping screws) for P.C. board or inner panel
