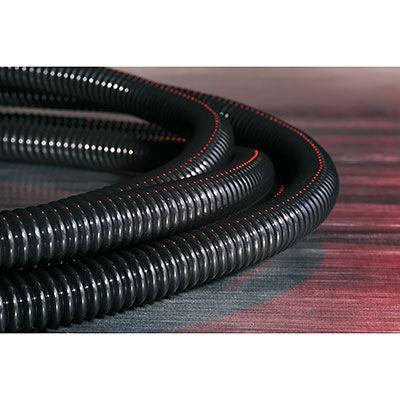

Non-Metallic Tubing 9mm Dia PTFE Black 164 ft per Package
Features
Excellent resistance to almost all chemicals.
Protects cables from extreme temperatures, fire, moisture, corrosion, vibration and abrasion.
Combination of high tensile strength and fatigue life make it resistant to wear.
Superior dielectric strength and anti-adhesive properties.
Product Type: Convoluted Tubing
Technical Specifications
Material: Polytetrafluoroethylene (PTFE)
Operating Temperature: -85°F to +500°F (-65°C to +260°C)
Color: Black (BK)
Storage Conditions: Store in a sealed package. Avoid direct heat sources and sunlight. Ideal storage conditions: 73°F (22.8°C), 50% RH
Use Conditions: For Indoor and Outdoor Use
Diameter D (Imperial): 0.42"
Diameter D (Metric): 10.6 mm
Diameter D2 (Imperial): 0.28"
Diameter D2 (Metric): 7.0 mm
Focused Markets and Industries: Aerospace Industry; Defense Industry
Inner Diameter ID (Imperial): 0.28"
Inner Diameter ID (metric): 7.0 mm
Inside Bend Radius (Imperial): 1.26"
Inside Bend Radius (Metric): 32 mm
Length L (Imperial): 164.0 ft
Length L (Metric): 50.0 m
Nominal Diameter (Imperial): 0.35"
Nominal Diameter (Metric): 9.0 mm
Outside Diameter D2 (imperial): 0.42"
Outside Diameter D2 (metric): 10.6 mm
Outside Diameter OD (imperial): 0.42"
Outside Diameter OD (metric): 10.6 mm
Pitch (imperial): 0.134"
Pitch (metric): 3.4 mm
Reel Length (imperial): 164.0 ft
Reel Length (metric): 50 m
Variant: Unslit
CE Certified: No
CSA Certified: No
Flammability: FAR 25
Halogen Free: No
Hazardous Goods: No
Prop65 Warning: No
REACH Conformity: Yes
ROHS Compliant: Yes
UL Listed (US): No
UL Listed (US and Canada): No
UL Recognized (US): No
UL Recognized (US and Canada): No
UV Resistant (Yes/No): No
UPC: 089306443773
Overview
HellermannTyton’s Polytetrafluoroethylene Convoluted Tubing provides an efficient method of routing and protecting wire harness assemblies while reducing the chance of installation damage. It also protects valuable hoses and cables. It is used in industries with demanding environments including aviation, aerospace, chemical, pharmaceutical, ship building, food processing and electrical.
