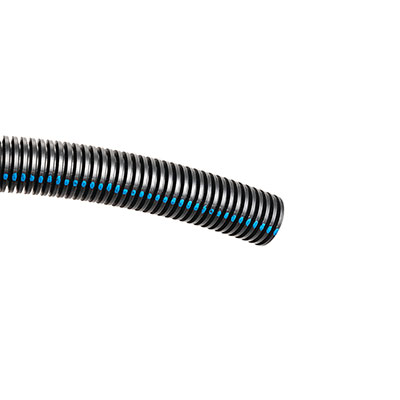

Convoluted Tubing Flame Retardant Unslit 0.38" Dia PP Black 1500 ft per Carton
Features
Tubing provides full coverage where spiral wrap or other coverings may not be suitable.
In harsh applications the tubing provides resistance to crushing, impact, and abrasion.
Tubing offers excellent protection against automotive fluids, vibration wear, water, snow, ice, and the effects of heat, cold, and sunlight on cables and wires.
Product Type: Convoluted Tubing
Technical Specifications
Material: Polypropylene, flame retardant (PPFR)
Operating Temperature: -40°F to +257°F (-40°C to +125°C)
Color: Black with Blue Stripe (BKSTBL)
Storage Conditions: Store in a sealed package. Avoid direct heat sources and sunlight. Ideal storage conditions: 73°F (22.8°C), 50% RH
Use Conditions: For Indoor and Outdoor Use
Diameter D (Imperial): 0.526"
Diameter D (Metric): 13.36 mm
Diameter D2 (Imperial): 0.380"
Diameter D2 (Metric): 9.65 mm
Inner Diameter ID (Imperial): 0.380"
Inner Diameter ID (metric): 9.65 mm
Length L (Imperial): 1500.0 ft
Length L (Metric): 457.2 m
Nominal Diameter (Imperial): 0.38"
Nominal Diameter (Metric): 9.65 mm
Outside Diameter D2 (imperial): 0.526"
Outside Diameter D2 (metric): 13.36 mm
Outside Diameter OD (imperial): 0.526"
Outside Diameter OD (metric): 13.36 mm
Trade Size: 3/8"
Variant: Unslit
Wall Thickness WT (Imperial): 0.005"
Wall Thickness WT (Metric): 0.127 mm
CE Certified: No
CSA Certified: No
Flammability: UL 94 V-2
Halogen Free: No
Prop65 Warning: No
REACH Conformity: Yes
ROHS Compliant: Yes
UL Listed (US): No
UL Listed (US and Canada): No
UL Recognized (US): No
UL Recognized (US and Canada): No
UV Resistant (Yes/No): No
UPC: 089306445203
Overview
HellermannTyton’s Convoluted Tubing, also known as Loom Tubing, provides an efficient method of routing and protecting wire harness assemblies while reducing the chance of installation damage. It can also serve to protect valuable hoses and cables. Convoluted tubing offers excellent protection against vibration wear, water, snow, ice and the effects of heat, cold and sunlight on cables and wires. The Polypropylene flame retardant material provides additional protection that is suitable for applications requiring a self-extinguishing material and complies with UL 94 V2 standards.
