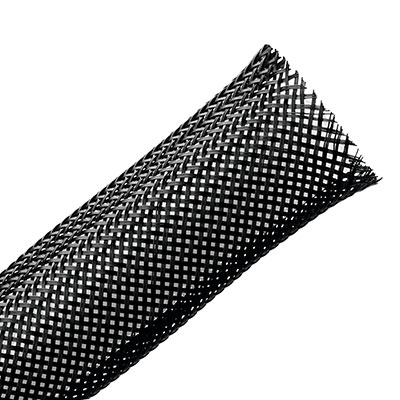

Braided Sleeving Expandable 0.75" Dia PA66 Monofilament Black 75 ft/reel
Features
Resists fuels, salts and solvents, gasoline, and other common contaminants.
Nylon monofilament construction weave offers a tight, 12 mil braid that provides full coverage but will not rot or retain moisture.
Material performs well in wet applications and where abiding substrate has a smooth surface.
Expands up to 150% of flat diameter for easy installation.
Product Type: Braided Sleeving - Specialty
Technical Specifications
Material: Polyamide 6.6 (PA66)
Operating Temperature: -49°F to +302°F (-45°C to +150°C)
Color: Black (BK)
Storage Conditions: Store in a sealed package. Avoid direct heat sources and sunlight. Ideal storage conditions: 73°F (22.8°C), 50% RH
Use Conditions: For Indoor and Outdoor Use
Abrasion Resistance: High
Bundle Diameter Max. (Imperial): 1.25"
Bundle Diameter Max. (Metric): 31.8 mm
Bundle Diameter Min. (Imperial): 0.5"
Bundle Diameter Min. (Metric): 12.7 mm
Diameter D (Imperial): 0.75"
Diameter D (Metric): 19.1 mm
Length L (Imperial): 75.0 ft
Length L (Metric): 22.9 m
Melting Point: +491 °F (+255 °C)
Nominal Diameter (Imperial): 0.75"
Nominal Diameter (Metric): 19.1 mm
Recommended Cutting Tools USA: Hot Knife
Reel Length (imperial): 75.0 ft
Reel Length (metric): 22.9 m
Trade Size: 3/4"
CE Certified: No
CSA Certified: No
Flammability: UL 94 V-2; FMVSS 302
Flammable (Yes/No): No
Halogen Free: Yes
Prop65 Warning: No
REACH Conformity: Yes
ROHS Compliant: Yes
UL Listed (US): No
UL Listed (US and Canada): No
UL Recognized (US): No
UL Recognized (US and Canada): No
UV Resistant (Yes/No): No
UPC: 089306330394
Overview
A pliable yet durable nylon sleeve that protects against cuts, abrasion and excessive wear caused by repetitive motion. Used on hoses, pipes, wiring harnesses and cables installed in cars, trucks, military vehicles, trains and industrial equipment. Protects delicate wiring in engine compartments and near exhaust systems or used to organize wires and breakouts in electrical harnesses.
