Operating Temperature: -320°F to +662°F (-196 °C to +350 °C)
Color: Green (GN)
Storage Conditions: Store in a sealed package. Avoid direct heat sources and sunlight. Ideal storage conditions: 73°F (22.8°C), 50% RH
Use Conditions: For Indoor Use Only
Abrasion Resistance: Low
Bundle Diameter Max. (Imperial): 1.5"
Bundle Diameter Max. (Metric): 38.1 mm
Bundle Diameter Min. (Imperial): 1"
Bundle Diameter Min. (Metric): 25.4 mm
Diameter D (Imperial): 1.25"
Diameter D (Metric): 31.8 mm
Length L (Imperial): 100.0 ft
Length L (Metric): 30.48 m
Nominal Diameter (Imperial): 1.25"
Nominal Diameter (Metric): 31.8 mm
Recommended Cutting Tools USA: Scissors
Reel Length (imperial): 100.0 ft
Reel Length (metric): 30.5 m
Trade Size: 1-1/4"
CE Certified: No
CSA Certified: No
Flammability: UL VW-1
Halogen Free: Yes
Prop65 Warning: No
REACH Conformity: Yes
ROHS Compliant: Yes
UL Listed (US): No
UL Listed (US and Canada): No
UL Recognized (US): No
UL Recognized (US and Canada): No
UV Resistant (Yes/No): No
UPC: 089306345015
Overview

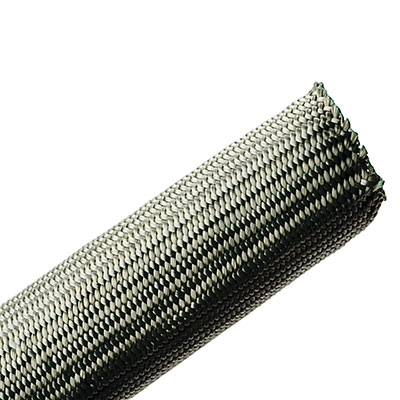

A densely woven aramid fiber sleeving, this soft and flexible material is self extinguishing and can withstand temperatures reaching up to 662°F. Excellent for use in extremely harsh environments including those with exposure to direct flame, high temperatures, as well as Beta, Gamma and X-Ray radiation - in particular, military and aerospace wiring and harnessing applications.
