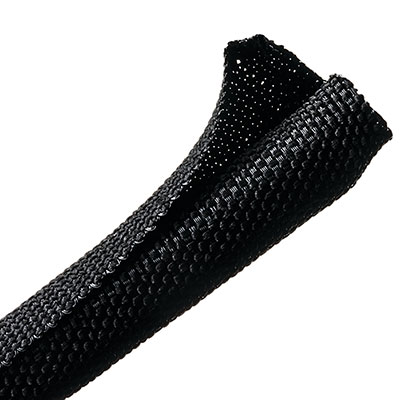

Braided Sleeving Split Wrap Woven 1/2" Dia PET Black 300 ft/bulk reel
Features
Center-slit overlapping design allows quick and easy access to the wires and cables for future maintenance or inspection without disassembly.
Flexible material allows it to easily wrap around a variety of component shapes and sizes, making it easier to use than slit-loom tubing or spiral-wrap materials.
A unique weave pattern provides increased coverage and greater resistance to abrasion, dust and debris.
Overlapping design enhances flexibility, allowing it to shift and bend without exposing wire and cables.
Product Type: Braided Sleeving - Wraps
Technical Specifications
Material: Polyester (PET)
Operating Temperature: -94°F to +257°F (-70°C to +125°C)
Color: Black (BK)
Storage Conditions: Store in a sealed package. Avoid direct heat sources and sunlight. Ideal storage conditions: 73°F (22.8°C), 50% RH
Use Conditions: For Indoor Use Only
Abrasion Resistance: Medium
Bundle Diameter Max. (Imperial): 0.5"
Bundle Diameter Max. (Metric): 12.7 mm
Bundle Diameter Min. (Imperial): 0.1"
Bundle Diameter Min. (Metric): 2.54 mm
Diameter D (Imperial): 0.50"
Diameter D (Metric): 12.7 mm
Length L (Imperial): 300.0 ft
Length L (Metric): 91.4 m
Melting Point: +482 °F (+250 °C)
Nominal Diameter (Imperial): 0.5"
Nominal Diameter (Metric): 12.7 mm
Recommended Cutting Tools USA: Hot Knife
Reel Length (imperial): 300.0 ft
Reel Length (metric): 91.44 m
Trade Size: 1/2"
Wall Thickness WT (Imperial): 0.027"
Wall Thickness WT (Metric): 0.68 mm
CE Certified: No
CSA Certified: No
Flammability: UL 94 V-0
Halogen Free: Yes
Prop65 Warning: No
REACH Conformity: Yes
ROHS Compliant: Yes
UL-File Number + Logo: E107055 [RU]
UL Listed (US): No
UL Listed (US and Canada): No
UL Recognized (US): Yes
UL Recognized (US and Canada): No
UV Resistant (Yes/No): Yes
UPC: 089306359111
Overview
Split Wrap Woven Sleeving is a self-closing sleeving manufactured from a unique blend of monofilament and multifilament polyester fibers that resemble a tightly woven material. The wrap around design provides increased flexibility, better coverage and greater resistance from abrasion for wires, cables and assemblies. Can also be used to reduce noise in applications that involve movement, while protecting sensitive electronics and communication systems from dust and debris.
