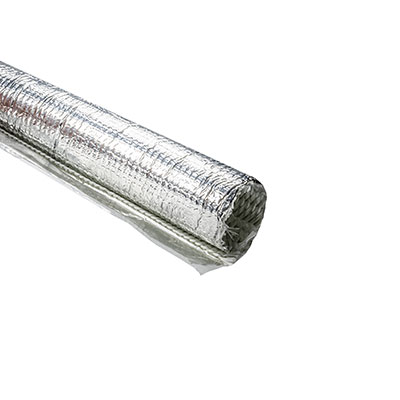

HellermannTyton 170-03196 Cable Sleeving

Braided Wrap Aluminum Laminated Fiberglass 4' Long Stick 1.25" Dia AL/GF Silver 6/box

Features

• A layer of aluminum provides protection from chemicals, scraping, cuts and abrasion.
• Additional layer also provides insulation barrier for vulnerable wires and cables within high temperature environments.
• Cuts with ordinary scissors for fast, easy application.
• Product Type: Braided Sleeving - High Temperature;Braided Sleeving - Wraps

Technical Specifications

• Material: Glass Fiber with Aluminium Foil (GF-AL)
• Operating Temperature: -76°F to +491°F (-60°C to +255°C)
• Color: Silver (SR)
• Storage Conditions: Store in a sealed package. Avoid direct heat sources and sunlight. Ideal storage conditions: 73°F (22.8°C), 50% RH
• Use Conditions: For Indoor Use Only
• Bundle Diameter Max. (Imperial): 1.2"
• Bundle Diameter Max. (Metric): 30.5 mm
• Bundle Diameter Min. (Imperial): 0.1"
• Bundle Diameter Min. (Metric): 2.54 mm
• Diameter D (Imperial): 1.25"
• Diameter D (Metric): 31.75 mm
• Length L (Imperial): 4.0 ft
• Length L (Metric): 1.22 m
• Melting Point: +2048 °F (1120 °C)
• Nominal Diameter (Imperial): 1.25"
• Nominal Diameter (Metric): 31.75 mm
• Reel Length (imperial): 4.0 ft
• Reel Length (metric): 1.22 m
• Trade Size: 1-1/4"
• Wall Thickness WT (Imperial): 0.042"
• Wall Thickness WT (Metric): 1.06 mm
• CE Certified: No
• CSA Certified: No
• Flammable (Yes/No): No
• Halogen Free: Yes
• Prop65 Warning: No
• REACH Conformity: Yes
• ROHS Compliant: Yes
• UL Listed (US): No
• UL Listed (US and Canada): No
• UL Recognized (US): No
• UL Recognized (US and Canada): No
• UV Resistant (Yes/No): No
• UPC: 089306371007

Overview

Aluminum Laminated Fiberglass Wrap sleeving combines the protection of bonded aluminum and fiberglass into a robust solution that deflects radiant heat away from sensitive wires and cables. Wrap-around design allows for fast and easy installation and maintenance. Sold in 4-foot sticks.
