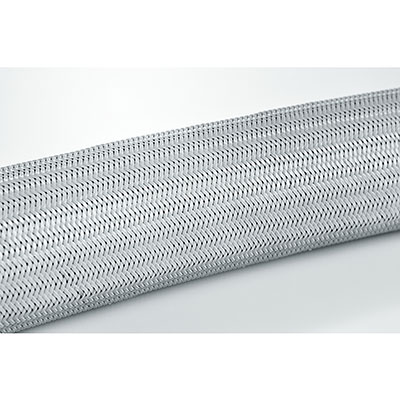

HellermannTyton 170-22000 Cable Sleeving

Helagaine Braided Sleeving 20 mm Dia PA66 GY 164ft/Reel

Features

• Nylon monofilament construction weave offers a tight braid that provides full coverage but will not rot or retain moisture.
• Material performs well in wet applications and where abiding substrate has a smooth surface.
• Product Type: Braided Sleeving - Specialty

Technical Specifications

• Material: Polyamide 6.6 (PA66)
• Operating Temperature: -76°F to +302°F (-60°C to +150°C)
• Color: Gray (GY)
• Storage Conditions: Store in a sealed package. Avoid direct heat sources and sunlight. Ideal storage conditions: 73°F (22.8°C), 50% RH
• Use Conditions: For Indoor Use Only
• Abrasion Resistance: High
• Bundle Diameter Max. (Imperial): 0.91"
• Bundle Diameter Max. (Metric): 23 mm
• Bundle Diameter Min. (Imperial): 0.59"
• Bundle Diameter Min. (Metric): 15 mm
• Diameter D (Imperial): 0.79"
• Diameter D (Metric): 20.1 mm
• Focused Markets and Industries: Automotive Industry; Electronics Industry
• Length L (Imperial): 164.0 ft
• Length L (Metric): 50.0 m
• Melting Point: +491 °F (+255 °C)
• Nominal Diameter (Imperial): 0.75"
• Nominal Diameter (Metric): 20 mm
• Recommended Cutting Tools USA: Hot Knife
• Reel Length (imperial): 164.0 ft
• Reel Length (metric): 50.0 m
• Trade Size: 3/4"
• CE Certified: No
• CSA Certified: No
• Flammability: UL 94 V-2; FMVSS 302
• Halogen Free: Yes
• Hazardous Goods: No
• Prop65 Warning: No
• REACH Conformity: Yes
• ROHS Compliant: Yes
• UL Listed (US): No
• UL Listed (US and Canada): No
• UL Recognized (US): No
• UL Recognized (US and Canada): No
• UV Resistant (Yes/No): No
• UPC: 089306333852

Overview

Helagaine Nylon Polyamide Expandable Braided Sleeving is a pliable yet durable sleeve that protects against cuts, abrasion and excessive wear caused by repetitive motion.
