HellermannTyton 553-50031

ShrinkTrak Labels 1-Sided Unslit 0.5" (12.7mm) PO-X Yellow 250/box

Features

• Slide Slit and optional center slits for easy wire insertion.
• Smooth surface for clean and legible printing.
• Supplied on a ladder style carrier so that markers can be kitted after printing.
• A 3:1 shrink ratio means fewer skews as each marker covers a wider range of wire diameters.
• Product Type: Heat Shrinkable Labels

Technical Specifications

• Material: Polyolefin, cross-linked (PO-X)
• Operating Temperature: -67°F to +275°F (-55°C to +135°C)
• Color: Yellow (YE)
• Storage Conditions: Store in a sealed package. Avoid direct heat sources and sunlight. Ideal storage conditions: 73°F (22.8°C), 50% RH
• Use Conditions: For Indoor Use Only
• Abrasion Resistance: Medium
• Diameter Max. (Imperial): 0.375"
• Diameter Max. (Metric): 9.53 mm
• Focused Markets and Industries: Electronics Industry
• Height H (Imperial): 0.77"
• Height H (Metric): 19.55 mm
• Labels per Column: 1
• Labels per Row: 1
• Markers per row: 1
• Outside Diameter Max. (Imperial): 0.5"
• Outside Diameter Max. (Metric): 12.7 mm
• Outside Diameter OD (imperial): 0.5"
• Outside Diameter OD (metric): 12.7 mm
• Print Method: thermal transfer print
• Printable Area Height (imperial): 0.77"
• Printable Area Height (metric): 19.55 mm
• Printable Area Width (imperial): 1.9"
• Printable Area Width (metric): 48.26 mm
• Recommended Application Tool: 556-04037
• Recommended Ribbon Type: TTDTHOUT; TTDTHOUTSM; TT822OUT; TT822OUTSM
• Recovered Diameter d (imperial): 0.166"
• Recovered Diameter d (metric): 4.2 mm
• Shrink Ratio: 3:1
• Shrink Temperature: +194 °F (+90 °C)
• Solvent Resistance: Good
• Supplied Diameter D (imperial): 0.47"
• Supplied Diameter D (metric): 11.9 mm
• Thickness T (Imperial): .003"
• Thickness T (Metric): .0762 mm
• Variant: Thin-Wall
• Wall Thickness WT (Imperial): 0.033"
• Wall Thickness WT (Metric): 0.84 mm
• Width of Liner WL (imperial): 3.0"
• Width of Liner WL (metric): 76.2 mm
• Width W (Imperial): 1.9"
• Width W (Metric): 48.26 mm
• Wire Size Range (AWG): 2-10
• Wire Size Range (metric): 0.166-0.47 mm²
• CE Certified: No
• CSA Certified: No
• Flammability: UL 224 VW-1
• Halogen Free: No
• Hazardous Goods: No
• Prop65 Warning: No
• REACH Conformity: Yes
• ROHS Compliant: Yes
• UL Listed (US): No
• UL Listed (US and Canada): No
• UL Recognized (US): No
• UL Recognized (US and Canada): No
• UV Resistant (Yes/No): No
• UPC: 089306254416

Overview

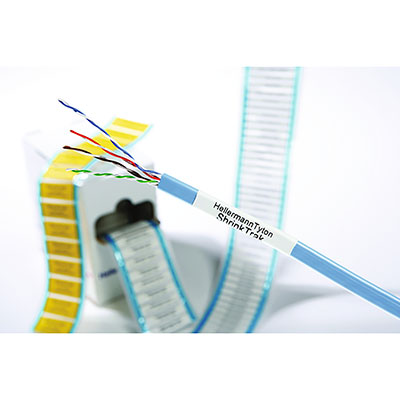

HellermannTyton's ShrinkTrak heat shrinkable markers make it easy to mark wire, cable and other components. The military approved heat shrink tubing is flattened and assembled in a ladder style carrier system for easy printing using a thermal transfer printer. The ladder system creates a kit of markers that can be sorted, removed and applied in any order thus saving time, labor and speeding production.
