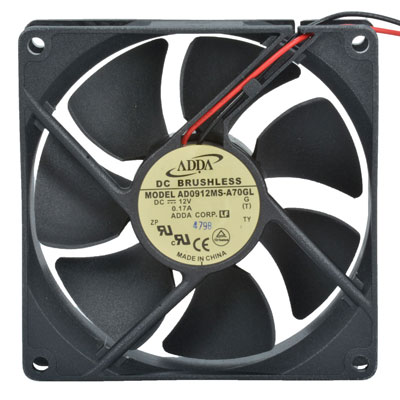

12 VDC 92 x 25 mm Brushless Fan
Sleeve 43 CFM

ADDA Corporation
AD0912MS-A70GL

View larger image

You may also like:
SC92-W2 SC92-W2
Jameco Valuepro
SC92-W2B SC92-W2B
Jameco Valuepro
SCREW-8825-S SCREW-8825-S
Jameco Valuepro
SCREW-8825 SCREW-8825
Jameco Valuepro
TA350DC-M33422-16 TA350DC-M33422-16
Nidec Corporation
3610KL-04W-B30 3610KL-04W-B30
NMB Technologies
AD0412HB-C79GP AD0412HB-C79GP
ADDA Corporation
AFB0412SHB-MOD AFB0412SHB-MOD
Delta Electronics
Clearance

$9.95 ea

6 In Stock

+ Add to my favorites
  • Jameco Part no.: 1928003
  • Manufacturer: ADDA Corporation
  • Manufacturer no.: AD0912MS-A70GL
  • HTS code: 8414599080
  • Web Exclusive
# of units Price
1+ $9.95
10+ $8.95
50+ $7.95

Request a Large Quantity Quote

12 VDC 92 x 25 mm Brushless Fan
Sleeve 43 CFM

Medium Speed, Sleeve Bearing

Specifications:

  • Manufacturer: Adda
  • Manufacture#: AD0912MS-A70GL
  • Voltage: 12 VDC
  • Current: 170 mA
  • Power: 2.04 Watt
  • Bearing Type: Sleeve
  • Air Flow: 43 CFM
  • Rated Speed: 2350 RPM
  • Noise: 31 dBA
  • Size: 92 mm x 92 mm x 25 mm
  • Connections: (2)-12'' Lead Wires
  • Agency Approvals: UL/CUL/TUV/CE


Report a problem
Suggest a product
Specification Value
Voltage Rating12 VDC
Height92 mm
Width92 mm
Depth25 mm
Air Flow (CFM)43
BearingSleeve
Current Rating170 mA
Agency ApprovalsUL, CUL, TUV, CE
Noise (dBA)31
Termination12" Wires
Power Rating2.04 W
