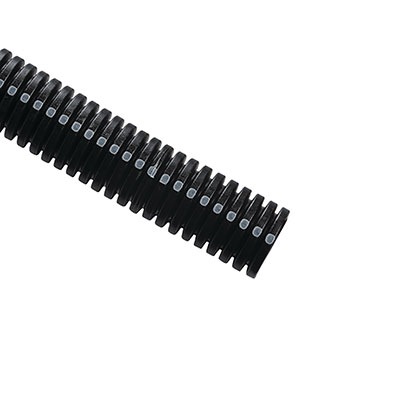

Convoluted Tubing Slit 1.25" Dia PA6 Black with Gray Stripe 250 ft per Carton
Features
Durable tubing provides protection of wire harness from friction, vibration, fraying and puncture.
Tubing protects cables and wires against automotive fluids and vibration wear.
Weather resistant material provides protection against water, snow, ice, and the effects of heat or cold.
Nylon material is formulated to withstand high temperatures.
Lateral slit allows fast and easy insertion of wires.
Product Type: Convoluted Tubing
Technical Specifications
Material: Polyamide 6 (PA6)
Operating Temperature: -40°F to +257°F (-40°C to +125°C)
Color: Black with Gray Stripe (BKSTGY)
Storage Conditions: Store in a sealed package. Avoid direct heat sources and sunlight. Ideal storage conditions: 73°F (22.8°C), 50% RH
Use Conditions: For Indoor Use Only
Diameter D (Imperial): 1.50"
Diameter D (Metric): 38.10 mm
Diameter D2 (Imperial): 1.257"
Diameter D2 (Metric): 31.93 mm
Inner Diameter ID (Imperial): 1.257"
Inner Diameter ID (metric): 31.93 mm
Length L (Imperial): 250.0 ft
Length L (Metric): 76.2 m
Nominal Diameter (Imperial): 1.25"
Nominal Diameter (Metric): 31.75 mm
Outside Diameter D2 (imperial): 1.50"
Outside Diameter D2 (metric): 38.10 mm
Outside Diameter OD (imperial): 1.50"
Outside Diameter OD (metric): 38.10 mm
Trade Size: 1-1/4"
Variant: Slit
Wall Thickness WT (Imperial): 0.006"
Wall Thickness WT (Metric): 0.152 mm
CE Certified: No
CSA Certified: No
Flammability: UL 94 HB
Halogen Free: No
Prop65 Warning: No
REACH Conformity: Yes
ROHS Compliant: Yes
UL Listed (US): No
UL Listed (US and Canada): No
UL Recognized (US): No
UL Recognized (US and Canada): No
UV Resistant (Yes/No): No
UPC: 089306114949
Overview
Convoluted tubing provides an efficient method of routing and protecting wire harness assemblies, while reducing the chance of installation damage. It also can serve to protect valuable wiring circuits. HellermannTyton’s convoluted tubing offers excellent protection against automotive fluids, vibration wear, water, snow, ice, and the effects of heat or cold on cables and wires. Available in standard, bulk, and dispenser box packaging. Material is slit.
