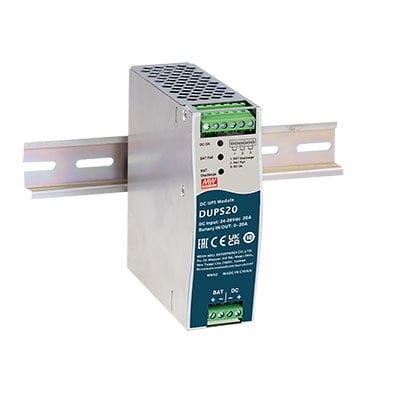

MEAN WELL DUPS20 UPS Uninterruptible Power Supply

Electronic Components by: Popularity &nbsp;|&nbsp; Title &nbsp;|&nbsp; Price &nbsp;|&nbsp; Category &nbsp;|&nbsp; Manufacturer &nbsp;|&nbsp; Part No
Top Selling Electronic by: Popularity &nbsp;|&nbsp; Title &nbsp;|&nbsp; Price &nbsp;|&nbsp; Category &nbsp;|&nbsp; Manufacturer &nbsp;|&nbsp; Part No
Staff Favorites by: Popularity &nbsp;|&nbsp; Title &nbsp;|&nbsp; Price &nbsp;|&nbsp; Category &nbsp;|&nbsp; Manufacturer &nbsp;|&nbsp; Part No

$$ Lowest Prices on MEAN WELL

$30.80 ea

*This product is subject to a tariff. See detail in the cart.

Uninterruptible DC-UPS controller
Parallel connection to DC BUS (Power supply + DC-UPS Module + Batteries + Load)
Suitable for 24V systems, up to 20 A
2 A battery charging current
Allows 4AH to 135AH lead-acid various battery capacities
Complete diagnostic and monitoring for DC BUS OK, battery discharge, battery fail
LED indicator for status
Protections: Battery reverse polarity & short circuit (by internal detection), battery discharge, over discharge current
Cooling by free air convection
Width only 40mm
3 year warranty

DC UPS Input

DC UPS Output

Battery

Specification	Value
Input Voltage	24 VDC
Input Voltage Range	24 VDC to 29 VDC
Output Current	20 A
Output Voltage	21 VDC to 29 VDC
Number of Outputs	1
Maximum Input Current	20 A
Minimum Operating Temperature	-30°C
Maximum Operating Temperature	70°C
Width	1.57 in.
Height	4.93 in.
Depth	4.47 in.
Weight	0.79 lbs.
Agency Approvals	EN, EAC, CE, UKCA
Output Connector Type	Screw Terminal Block
Mounting	DIN Rail
Additional Feature	UPS Controller
Battery Type	Lead-acid
Capacity	4 AH to 135 AH
Charge Current	2 A
Product Type	UPS Module
Manufacturer Series	DUPS
Compliance	Compliance Docs
