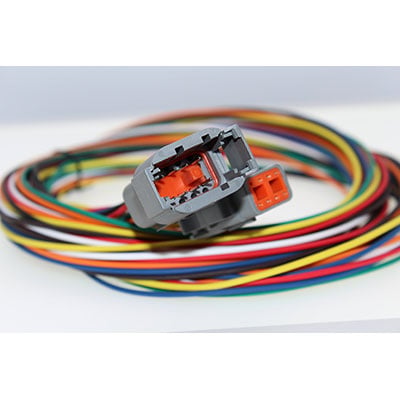

Pre-Assembled Connector Set Deutsch DTM 8 Circuit 50 Volt DC 7.5A 18 AWG TXL Automotive Wire 72"
Features
Deutsch DTM Series
Connector Specification:
Deutsch
Connector Series = DTM
Circuit Count = 8
Color = Gray
Material = Thermoplastic
Sealed = Yes, Silicone Elastomer
Assembly #: HF-08-7272
Connector 1: DTM04-08PA
Connector 2: DTM06-08SA
Wire Specifications:
18 AWG
50 VDC, 125 degrees C
Stranded, Bare Copper
SAE Type = SAE-J1128 TXL
Standard Wall TXL Automotive Cross-Link
Wire Length = 72" both ends
Free ends are stripped 0.6" with slugs left on to protect wire strands
Contacts:
Copper Alloy, Nickel Plated
Male contacts in Receptacle
Female contacts in Plug
Ratings:
50 VDC 7.5 Amp MAX *
Max Temp 125 Deg C
* Total MAX current will be dependent on the total wire length and gauge of wire used in the entire circuit. As wire length and wire gauge decrease, current capacity will decrease. Total wire length is the distance that the wire will travel from the source to the load (through the connector kit) plus the length of the return lines.
Overview
Deutsch DTM mini connectors we have come to respect so much with field proven quality. A favorite choice for racers and car builders due to their sealed and durable reliability. Ideal for engine compartments, chassis, harsh environments where dust, dirt, humidity, salt-spray and off-road use are major concerns. Able to withstand high-pressure, high-temperature washdown.
The DTM (Mini) series (our HF Series) is the lightest of the three DT styles being the answer to all of your smaller wire gauge and low current load applications. This connector system is available in 2, 3, 4, 6, 8, and 12 circuit configurations with integral locking latches and hermetic, silicone seals at both connector ends and at the internal mating point.
Wired for DC only applications up to 50 volts with TXL, (extra thin wall) 18AWG, cross linked automotive grade wire offering all the protection of high-grade automotive wire but at a fraction of the weight. Insulation has a smooth surface finish, resistant to gasoline, oil, grease, coolant, most acids and solvents. Wire is multicolored for easy installation.
Wire color configuration by connector terminal location: (Same for both connectors):
