MEAN WELL LPP-100-3.3 AC to DC Switching Open Frame Power Supplies

MEAN WELL Rohs logo

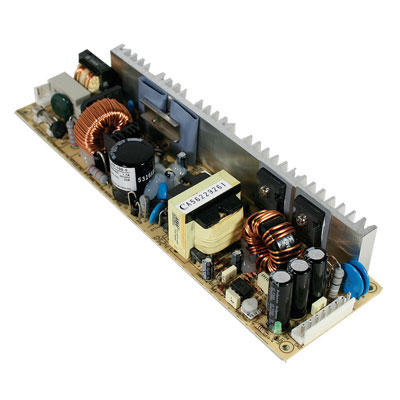

LPP-100-3.3 Open Frame

View larger image

  • AC to DC Power Supply Open Frame Single Output 3.3 Volt 20 Amp 66 Watt PFC
  • Jameco Part no.: 2104081
  • Manufacturer: MEAN WELL
  • Manufacturer p/n: LPP-100-3.3
  • NCNR (Non-Cancelable, Non-Returnable)
  • HTS code: 8504.40.9520

$$ Lowest Prices on MEAN WELL

You May Also Like
LPS-100-3.3 LPS-100-3.3
MEAN WELL
$30.40
LPS-100-5 LPS-100-5
MEAN WELL
$30.40
LPP-100-5 LPP-100-5
MEAN WELL
$34.40
LPP-150-3.3 LPP-150-3.3
MEAN WELL
$36.90
LPS-50-3.3 LPS-50-3.3
MEAN WELL
$18.60
LPS-75-3.3 LPS-75-3.3
MEAN WELL
$19.40

$34.40 ea

2 Weeks Lead Time

*This product is subject to a tariff. See detail in the cart.

+ Add to my favorites
# of units Price
1+ $34.40
5+ $32.80
10+ $31.30
20+ $30.40

Request Larger Quantity Quote

66 W Single Output with PFC Function


3.3 Volts @ 20 Amps

Features:
  • Universal AC input / Full range
  • Built-in active PFC function
  • Protections: Short circuit / Overload / Over voltage
  • Cooling by free air convection
  • 100% full load burn-in test
  • Fixed switching frequency at PFC:67KHz PWM:134KHz
  • 3 years warranty


Report a problem
Suggest a product
Specification Value
Number of Outputs1
Output Voltage3.3 VDC
Output Current20 A
Additional Output Voltages (VDC)N/A
Input Voltage85 VAC to 264 VAC
Input Frequency47 Hz to 63 Hz
Output Connector TypeJST B8P-VH or equiv.
PFC FunctionYes
Agency ApprovalsUL, CUL, TUV, CB, CE, EN, EAC, UKCA
Efficiency69%
Manufacturer SeriesLPP-100
Power Rating66 W
Maximum Input Current1.7 A
Minimum Operating Temperature-10°C
Maximum Operating Temperature60°C
Minimum Isolation Voltage3000V
SwitchingAuto Switching SMPS
StyleOpen Frame
Length8.70 in.
Width2.40 in.
Height1.30 in.
ComplianceCompliance Docs
