MEAN WELL LPS-100-3.3 AC to DC Switching Open Frame Power Supplies

MEAN WELL Rohs logo

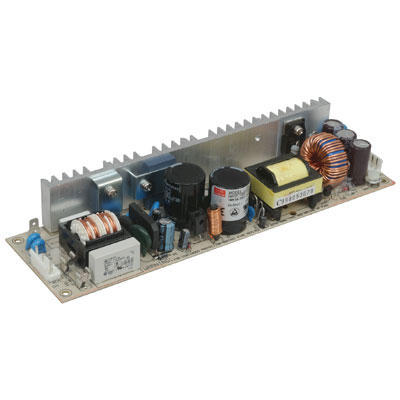

LPS-100-3.3 Open Frame

View larger image

  • AC to DC Power Supply Open Frame Single Output 3.3 Volt 20 Amp 66 Watt Fixed Switching at 134KHz
  • Jameco Part no.: 2102588
  • Manufacturer: MEAN WELL
  • Manufacturer p/n: LPS-100-3.3
  • NCNR (Non-Cancelable, Non-Returnable)
  • HTS code: 8504.40.9520

$$ Lowest Prices on MEAN WELL

You May Also Like
LPP-100-3.3 LPP-100-3.3
MEAN WELL
$34.40
LPS-100-5 LPS-100-5
MEAN WELL
$30.40
LPP-100-5 LPP-100-5
MEAN WELL
$34.40
LPP-150-3.3 LPP-150-3.3
MEAN WELL
$36.90
LPS-50-3.3 LPS-50-3.3
MEAN WELL
$18.60
LPS-75-3.3 LPS-75-3.3
MEAN WELL
$19.40

$30.40 ea

14 Weeks Lead Time

*This product is subject to a tariff. See detail in the cart.

+ Add to my favorites
# of units Price
1+ $30.40
5+ $29.00
10+ $27.70
20+ $26.90

Request Larger Quantity Quote

66 W Single Output without PFC Function


3.3 Volts @ 20 Amps

Features:
  • Universal AC input / Full range
  • Protections: Short circuit / Overload / Over voltage
  • Cooling by free air convection
  • 100% full load burn-in test
  • Fix switching frequency at 134KHz
  • 3 years warranty


Report a problem
Suggest a product
Specification Value
Number of Outputs1
Output Voltage3.3 VDC
Output Current20 A
Additional Output Voltages (VDC)N/A
Input Voltage88 VAC to 132 VAC, 176 VAC to 264 VAC
Input Frequency47 Hz to 63 Hz
Output Connector TypeJST B8P-VH or equiv.
PFC FunctionNo
Agency ApprovalsUL, CUL, TUV, CB, CE, EN, EAC
Efficiency69%
Manufacturer SeriesLPS-100
Power Rating66 W
Maximum Input Current2.3 A
Minimum Operating Temperature-10°C
Maximum Operating Temperature60°C
Minimum Isolation Voltage3000V
SwitchingAuto Switching SMPS
StyleOpen Frame
Length8.70 in.
Width2.40 in.
Height1.30 in.
