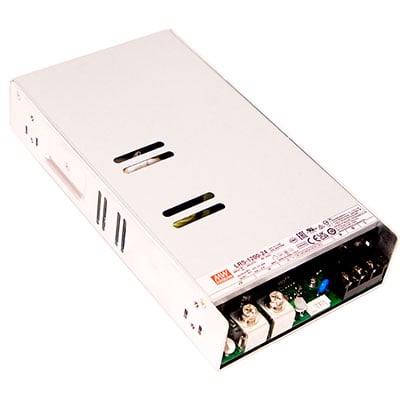

Low-Profile Economical Enclosed Switching Power Supply 1200W 48V 25A
Features
AC input 108 to 305 VAC input
Global certificated in multiple fields (ITE 62368-1, Industrial 61558-1/-2-16)
Compact size with low profile (17W/inch³)
150% peak power for 5 seconds
High efficiency up to 94%
Built-in constant current limiting circuit
Protections: Short circuit, overload, over voltage, over temperature
Forced air cooling, cooling fan speed control
Built-in DC OK / Remote Control / Remote Sense
-30 to +70°C wide range operating temperature
Over voltage category (OVC III)
Operating altitude up to 5000 meters
Conformal coating
3-year warranty
Overview
The LRS-1200 series is a 1200W single output enclosed type economic power supply with a 41mm low profile design. Adopting the input of 180VAC to 204VAC, the entire series provides an output voltage line of 12V, 24V, 36V, and 48V. In addition to the high efficiency up to 94%, with the built-in long-life fan, LRS-1200 can work under -30 to +70°C under full load. LRS-1200 has complete protection functions and 3G anti-vibration capability. It complies with complete international safety regulations and serves as a high price-to-performance power supply solution for various industrial applications.
