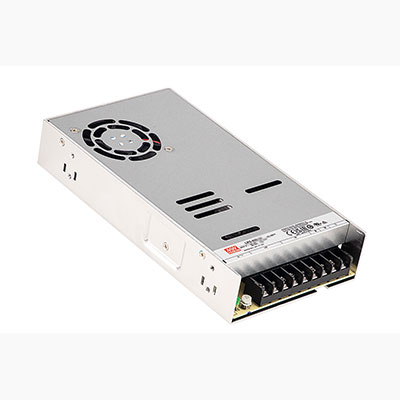

600W 48V 12.5A Enclosed Single Output High Peak Power Supply
Features
AC input range selectable by switch
Withstand 300 VAC surge input for 5 seconds
Up to 200% peak power capability
Protections: Short circuit, overload, over voltage, over temperature
Over voltage category III (OVC III)
Forced air cooling by built-in DC fan
Built-in cooling Fan ON-OFF control
1U low profile
Compliance to IEC/BS EN/EN61558-1 and 62368-1
Operating altitude up to 2000 meters
Withstand 5G vibration test
LED indicator for power on
High operating temperature up to 65°C
High efficiency, long life and high reliability
3-year warranty
Overview
LRS-600N2 series is a 600W single-output enclosed type power supply with a 41mm low profile design. Adopting the input of 115VAC or 230VAC (selectable by switch), the entire series provides an output voltage line of 12V, 24V, 36V, and 48V. In addition to the high efficiency up to 92%, the built-in long life fan can work from -20°C to +65°C with full load.
LRS-600N2 has the complete protection functions and 5G anti-vibration capability and is compliant with international safety regulations such as IEC/UL 62368-1. LRS-600N2 series serves as a high price-to-performance power supply solution for various industrial applications. Moreover, it can provide 200% short-duration peak power for motor applications and electromechanical loads requiring much higher power during start-up.
