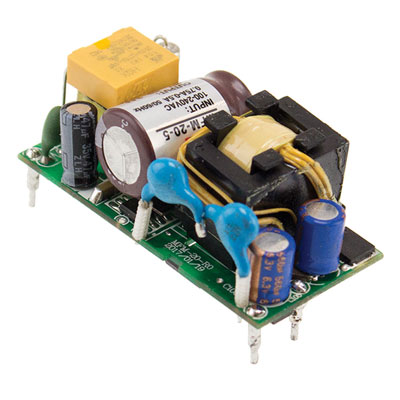

MEAN WELL MFM-20-12 Medical AC to DC Open Frame Power Supplies

12V 1800mA 21W High Reliability Open Frame 2xMOPP Green Medical Power Supply

Features

• 1.93" x 0.94" compact size
• Medical safety approved (2x MOPP) according to ANSI/AAMI ES60601-1 and IEC/EN60601-1
• Suitable for BF applications with appropriate system considerations
• No load power consumption <0.075W
• Extremely low leakage current
• Wide operating temperature range: -35 to +85°C
• EMI Class B for class II configuration
• Protections: Short circuit, overload, over voltage
• No minimum load required
• 3 year warranty

Specifications

• Input: 80-264 VAC @ 47 -63 Hz
• Rated power: 21.6 watts
• Ripple & Noise: 150 mVp-p
• Line regulation: ± 0.3%
• Load regulation: ± 0.5%
• Efficiency: 85.5%
• Agency approvals: UL, CUL, TUV, CB, CE

Applications

• Portable medical devices
• Mobile clinical workstations
• Medical computer monitor
• Medical examination instruments
