MEAN WELL RPD-75B Medical AC to DC Open Frame Power Supplies

MEAN WELL Rohs logo

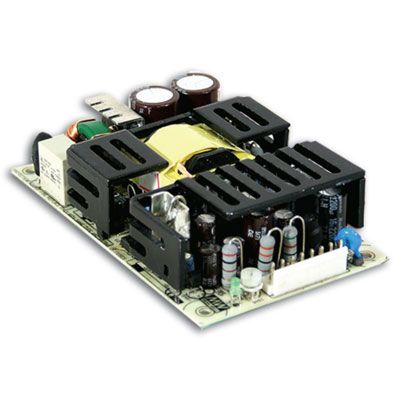

RPD-75B Medical AC to DC Open Frame Power Supplies

View larger image

  • 73 Watt Dual Output AC-DC Open Frame Power Supply 5 Volts @ 5 Amps, 24 Volts @ 2 Amps
  • Jameco Part no.: 2106263
  • Manufacturer: MEAN WELL
  • Manufacturer p/n: RPD-75B
  • NCNR (Non-Cancelable, Non-Returnable)
  • HTS code: 8504.40.9520

$$ Lowest Prices on MEAN WELL

You May Also Like
RPD-60A RPD-60A
MEAN WELL
$17.50
RPD-60B RPD-60B
MEAN WELL
$17.50
RPD-75A RPD-75A
MEAN WELL
$26.60
RPS-160-12 RPS-160-12
MEAN WELL
$47.90
RPS-160-15 RPS-160-15
MEAN WELL
$47.90
RPS-160-24 RPS-160-24
MEAN WELL
$47.90

$26.60 ea

2 Weeks Lead Time

*This product is subject to a tariff. See detail in the cart.

+ Add to my favorites
# of units Price
1+ $26.60
5+ $25.30
10+ $24.20
20+ $23.50

Request Larger Quantity Quote

75W Dual Output Medical Type

CH1: 5 Volts @ 5 Amps
CH2: 24 Volts @ 2 Amps

Features:
  • Universal AC input/Full range
  • Low leakage current<200uA
  • Protections: Short circuit / Overload / Over voltage
  • Free air convection for rated power and 23.5CFM forced air convection for peak load
  • UL60601-1/IEC60601-1/EN60601-1 medical safety approved
  • Fixed switching frequency at 65KHz
  • 3 years warranty

    Report a problem
    Suggest a product
    • Specification Value
    Output Voltage5 VDC
    Output Current6.80 A
    Power Rating73 W
    Manufacturer SeriesRPD-75
    Additional Output Voltages (VDC)24 VDC
    Input Voltage90 VAC to 264 VAC
    Efficiency79%
    Input Frequency47 Hz to 63 Hz
    Maximum Input Current1.5 A
    Output Connector TypeJST B6P-VH or equiv.
    Output Connector DiametersN/A
    Number of Outputs2
    Product TypeAC to DC Power Supply SMPS
    Minimum Isolation Voltage4000V
    Minimum Operating Temperature-20°C
    Maximum Operating Temperature70°C
    Length5 in.
    Width3 in.
    Height1.2 in.
    Agency ApprovalsUL, CUL, TUV, CB, CE, EN, EAC
    TypeAuto Switching SMPS
    StyleMedical Open Frame
    ComplianceCompliance Docs
