Slim Wall Adapter 5 Volt 1 Amp 5 Watt 1.7mm Plug

Jameco ReliaPro
MU12-2050100-A1 Wall Adapters

View larger image

  • Jameco Part no.: 2309463
  • Manufacturer: Jameco ReliaPro
  • Manufacturer p/n: MU12-2050100-A1
  • No datasheet available. Please review the tabs below for product specifications.
You May Also Like
ADS0051-W050080 ADS0051-W050080
Jameco ReliaPro
$6.95
SPS-054000D SPS-054000D
MG Electronics
$9.00
KSAS0180500300VU-VI KSAS0180500300VU-VI
Jameco ReliaPro
$9.95
SGA40U05-P1J SGA40U05-P1J
MEAN WELL
$22.45
SGA40U18-P1J SGA40U18-P1J
MEAN WELL
$22.45
SGA40U24-P1J SGA40U24-P1J
MEAN WELL
$22.45

This product has been discontinued and is not available for purchase. Please click on the button below for replacement and/or substitute products.

# of units Price
1+ $4.95
10+ $4.49
50+ $3.95
100+ $3.59

Request Larger Quantity Quote

Slim Wall Adapter 5 Volt 1 Amp 5 Watt 1.7mm Plug

Specifications

  • Output voltage: 5 VDC
  • Output current: 1 A (1000 mA)
  • Output connector: 1.7 mm x 4.0 mm, center positive cylindrical female barrel plug
  • Input voltage: 100 to 240 VAC @ 50 to 60 Hz; 0.5A
  • Size: 2.9"L x 1.19"W x 1.8"H
  • Case color: Black
  • Output cord length: 6 feet (72")
  • Weight: 0.4 lbs.
  • Agency approvals: UL, CUL, CEC Level IV

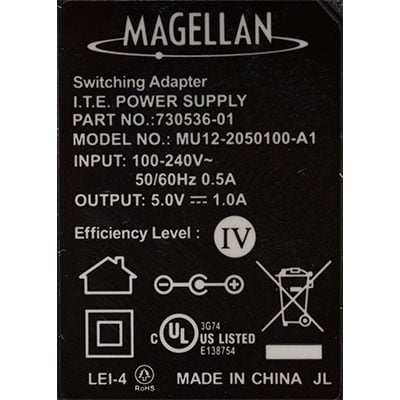

Power label sticker image

Report a problem
Suggest a product
Specification Value
Output Voltage5 VDC
Output Current1 A
Output Connector Diameters1.7mm x 4.0mm
Input Voltage100 VAC to 240 VAC
Input Frequency50 Hz to 60 Hz
Output Connector TypeCylindrical Female
PolarityCenter Positive
Agency ApprovalsUL, CUL, FCC, PSE
AC Power CordN/A
Maximum Input Current0.5 A
Number of Outputs1
Power Rating5 W
Manufacturer SeriesReliaPro
ColorBlack
Product TypeAuto Switching SMPS
StyleSlimline Wall Mount
PackagingCarton
Product NoteLevel IV
Length2.9 in.
Height1.9 in.
Depth1.8 in.
Input ConnectorNEMA 1-15P
