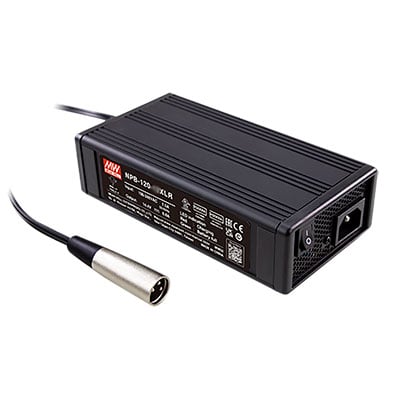

MEAN WELL NPB-120-24XLR Battery Chargers

Electronic Components by: Popularity &nbsp;|&nbsp; Title &nbsp;|&nbsp; Price &nbsp;|&nbsp; Category &nbsp;|&nbsp; Manufacturer &nbsp;|&nbsp; Part No
Top Selling Electronic by: Popularity &nbsp;|&nbsp; Title &nbsp;|&nbsp; Price &nbsp;|&nbsp; Category &nbsp;|&nbsp; Manufacturer &nbsp;|&nbsp; Part No
Staff Favorites by: Popularity &nbsp;|&nbsp; Title &nbsp;|&nbsp; Price &nbsp;|&nbsp; Category &nbsp;|&nbsp; Manufacturer &nbsp;|&nbsp; Part No

$$ Lowest Prices on MEAN WELL

$56.10 ea

*This product is subject to a tariff. See detail in the cart.

Built-in PFC function
Charger compatible with lead-acid and li-ion batteries
Fanless design
Wide adjustable output range by VR:
- Charging voltage adjustable: see range in specs below
- Charging current adjustable (50% to 100% of rated current)
2 or 3 stage selectable by DIP switch
No load power consumption <0.15W (AC switch off)
Wide operating temperature: -30°C to 70°C
Protections: Short circuit, over voltage, over temperature, battery reverse polarity protection
Complies with UL/EN62368-1 and EN60335-1/2-29 (dual certification)
Front panel LED indicator for charging status
3-year warranty

Specification	Value
Output Voltage	27.6 VDC
Output Range	21 VDC to 30.4 VDC
Output Current	4 A
Power Rating	121.6 W
Input Voltage	90 VAC to 264 VAC
Input Frequency	47 Hz to 63 Hz
Maximum Input Current	1.5 A
Efficiency	89%
Output Connector Type	XLR 3-Pin
Manufacturer Series	NPB-120
Length	7.09 in.
Width	3.78 in.
Height	1.93 in.
Agency Approvals	UL, CUL, CB, CE, DEKRA, AS/NZS, UKCA, EN, EAC
Additional Feature	Compact, Wide Output Range, Fanless, Adjustable Output, For SLA and Li-Ion
PFC Function	Yes
Color	Black
Minimum Operating Temperature	-30°C
Maximum Operating Temperature	70°C
AC Power Cord	NOT INCLUDED, RECOMMEND 2271575
Product Type	Battery Charger
Compliance	Compliance Docs
