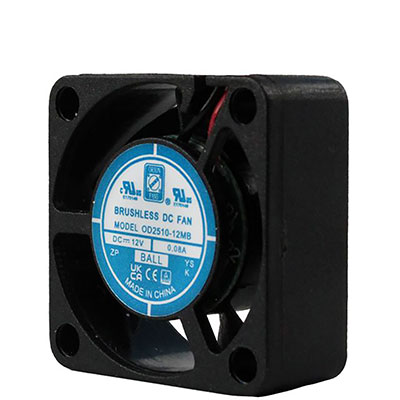

Orion Fans OD2510-12HB02A DC Brushless Fans

25 mm x 25 mm x 10 mm Tube Axial Fan 12 VDC Ball Bearing 2.7CFM 29.2dBA 12" Wires (3)

Features

• Voltage Rating: 12 VDC
• Height: 25 mm
• Width: 25 mm
• Depth: 10 mm
• Air Flow (CFM): 2.7
• Bearing: Ball
• Current Rating: 30 mA
• Power Rating: 0.72 W
• Agency Approvals: UL, CUL, TUV, CE, UKCA
• Noise (dBA): 29.2
• Termination: 12" Wires (3)
• Product Type: 25mm x 25mm DC Fan
• Speed: 11500 rpm
• Maximum Pressure: 0.27 in.
• Additional Features: Open Collector Alarm Output
• Motor Drive Type: Brushless DC, Auto Cutoff, Auto Restart, Electronically Protected, Polarity Protected

Overview

Fans are a necessary component when you need to keep electronics cool or to keep the air flow moving. The Ball bearing system of the tube axial fan is designed to operate up to 11500 rpm.
