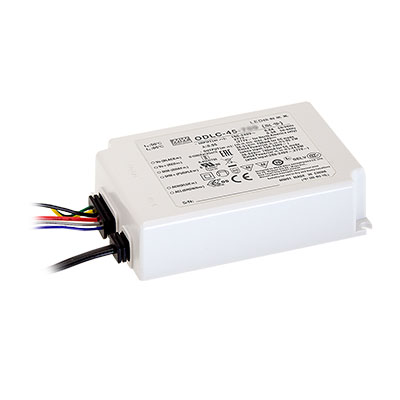

MEAN WELL ODLC-45-350 Constant Current LED Drivers

MEAN WELL Rohs logo
ODLC-45-350 Constant Current (CC)

View larger image

  • Constant Current Mode LED Driver 350mA 57-95V 33W 2-in-1 Dimming Stripped and Tinned Wires
  • Jameco Part no.: 2318863
  • Manufacturer: MEAN WELL
  • Manufacturer p/n: ODLC-45-350
  • NCNR (Non-Cancelable, Non-Returnable)
  • HTS code: 8504.40.9510

$$ Lowest Prices on MEAN WELL

You May Also Like
PLN-60-12 PLN-60-12
MEAN WELL
$39.95
PLN-60-15 PLN-60-15
MEAN WELL
$56.95
PLN-60-24 PLN-60-24
MEAN WELL
$56.95
PLN-30-48 PLN-30-48
MEAN WELL
$34.95
PLN-30-12 PLN-30-12
MEAN WELL
$34.95
PLN-30-24 PLN-30-24
MEAN WELL
$34.95

This product has been discontinued and is not available for purchase. Please click on the button below for replacement and/or substitute products.

# of units Price
1+ $23.00
5+ $20.90
25+ $18.64

Request Larger Quantity Quote

Constant Current Mode LED Driver 350mA 57-95V 33W 2-in-1 Dimming Stripped and Tinned Wires

Features

  • Constant Current (CC) mode output
  • Flicker free design
  • Plastic housing with class II design
  • Built-in active PFC function
  • No load power consumption: <0.5W
  • IP67 rated for indoor or outdoor installations
  • 2 in 1 dimming (dim-to-off), 0 to 10 VDC and 10 V PWM

Specifications

  • Rated Current: 350 mA
  • Constant Current Region: 57 VDC to 95 VDC
  • Rated Power: 33.25 W
  • Input Voltage Range: 90 to 295 VAC @ 47 to 63 Hz;
  • Input AC Current: 0.6 A/115 VAC, 0.4 A/230 VAC, 0.3 A/277 VAC
  • Efficiency: 86%
  • Output Connection: Stripped and tinned wires
  • Agency Approvals: UL, CUL, CB, CE, EN, ENEC, EAC, CCC, SELV

Applications

  • LED panel lighting
  • LED flood lighting
  • Indoor LED lighting


Report a problem
Suggest a product
Specification Value
Output VoltageSee Output Range
Output Current0.35 A
Output Range57 VDC to 95 VDC
Input Voltage90 VAC to 295 VAC
Output Connector TypeStripped and Tinned
Length4.37 in.
Width3.03 in.
Height1.12 in.
PFC FunctionYes
Agency ApprovalsUL, CUL, CB, CE, EN, EAC, CCC, ENEC, SELV
Power Rating33.25 W
Input Frequency47 Hz to 63 Hz
Maximum Input Current0.6 A
Efficiency86%
Minimum Isolation Voltage3750V
Minimum Operating Temperature-20°C
Maximum Operating Temperature85°C
Manufacturer SeriesODLC-45
Number of Outputs1
ColorWhite
Product TypeAuto Switching SMPS
StyleEnclosed
Output Voltage (Channel 1)57 VDC to 95 VDC
Output Current (Channel 1)0.35 A
IP RatingIP67
