$63.10 ea

Lead time 7 weeks

*This product is subject to a tariff.
See detail in the cart.

  • Jameco Part no.: 2253984
  • Manufacturer: MEAN WELL
  • Manufacturer no.: RPS-300-27-C
  • NCNR (Non-Cancelable, Non Returnable)
  • Electronics Parts Locator
# of units Price
1+ $63.10
10+ $57.40

Request a Large Quantity Quote

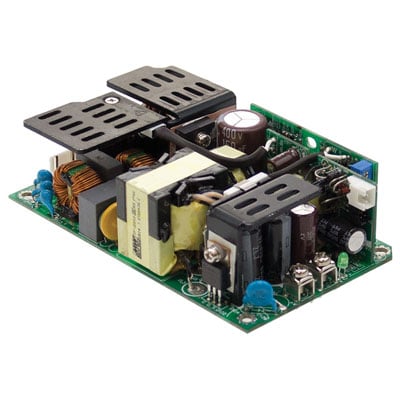

27V 7.4A 200W Green Enclosed Medical Power Supply

27 Volts @ 7.4 Amps (convection) / 11.12 Amps (20.5 CFM)


  • 5" x 3" miniature size
  • Universal AC input input / full range: 90 to 264 VAC @ 47-63 Hz
  • Output voltage: 27 VDC
  • Rated power: 200 watts (convection); 300 watts (20.5 CFM fan)
  • Ripple & noise: 200 mVp-p
  • Load regulation: ±1%
  • Line regulation: ±0.5%
  • High efficiency up to 93%
  • Built-in active PFC function
  • Medical safety approved (2x MOPP between primary to secondary)
  • Suitable for BF application with appropriate system consideration
  • Low leakage current <200µA
  • No load power consumption <0.5W by PS-ON control
  • Protections: Short circuit, over load, over voltage, over temperature
  • Cooling by free air convection for 200W, and 300W when 20.5 CFM forced air fan is used
  • Built-in 12V/0.5A fan standby
  • Standby 5V @ 1A with fan, 0.6 without fan
  • LED indicator for power on
  • 3 year warranty


  • Oral irrigator
  • Hemodialysis machine
  • Medical monitors
  • Sleep apnea devices
  • Pumps machine

Report a problem
Suggest a product
Specification Value
Primary Output Voltage (VDC)27
Output Current (A)7.4
Maximum Output Power (W)300.24
Input Voltage (VAC)90 to 264
Input Frequency47 to 63
Maximum Input Current (A)3.5
Output Connector TypeScrew Terminal Block
Number of Outputs1
Product TypeAC to DC Power Supply
MFR Product FamilyRPS-300
Efficiency (%)93
Minimum Isolation Voltage4000V
Operating Temperature-Min (Cel)-30
Operating Temperature-Max (Cel)70
Length (inch)5.12
Width (inch)3.41
Height (inch)1.69
Agency ApprovalsUL/CUL/TUV/CB/CE/EN/EAC
StyleMedical Enclosed
