MEAN WELL RQ-85C AC to DC Switching Enclosed Multiple Output Power Supplies

MEAN WELL Rohs logo

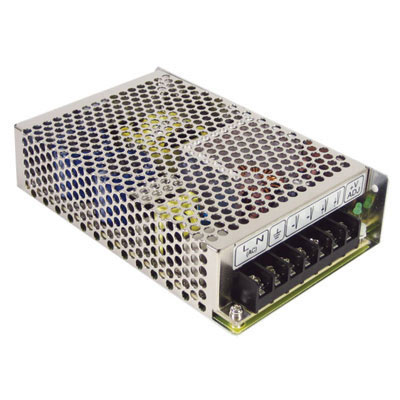

RQ-85C Enclosed-Multiple Output

View larger image

$$ Lowest Prices on MEAN WELL

You May Also Like
QP-150-3B QP-150-3B
MEAN WELL
$97.90
QP-150F QP-150F
MEAN WELL
$97.90
QP-150D QP-150D
MEAN WELL
$97.90
QP-200-3B QP-200-3B
MEAN WELL
$111.95
QP-200D QP-200D
MEAN WELL
$111.95
ADS-15524 ADS-15524
MEAN WELL
$73.30
Price Reduced

$34.20 ea

2 Weeks Lead Time

*This product is subject to a tariff. See detail in the cart.

+ Add to my favorites
# of units Price
1+ $34.20
5+ $32.60
10+ $31.10
20+ $30.20

Request Larger Quantity Quote

82.5W Quad Output Regulated Switching Power Supply


Channel 1: 5 Volts @ 7 Amps
Channel 2: 15 Volts @ 2.5 Amps
Channel 3: -5 Volts @ 0.5 Amps
Channel 4: -15 Volts @ 0.5 Amps

Features:

  • Input voltage range: 88-264VAC @ 47-63Hz, or 125-373VDC
  • Efficiency: 77%
  • Protections: Short circuit / Overload / Over voltage
  • Cooling by free air convection
  • Withstand 300VAC surge input for 5 seconds
  • Withstand 5G vibration test
  • LED indicator for power on
  • High operating temperature up to 70°C
  • 100% full load burn-in test
  • Size: 6.3"L x 3.8"W x 1.5"H
  • Weight: 1.3 lbs.

    Report a problem
    Suggest a product
    • Specification Value
    Output Voltage5 VDC
    Output Current7 A
    Power Rating82.5 W
    Manufacturer SeriesRQ-85
    Additional Output Voltages (VDC)15, -5, -15
    Input Voltage88 VAC to 264 VAC
    Efficiency77%
    Input Frequency47 Hz to 63 Hz
    Maximum Input Current2.5 A
    Output Connector TypeScrew Terminal Block
    Number of Outputs4
    Product TypeAC to DC Power Supply
    Agency ApprovalsUL, CUL, TUV, CB, CE, EN, EAC
    Minimum Isolation Voltage3000V
    Minimum Operating Temperature-25°C
    Maximum Operating Temperature70°C
    Length6.3 in.
    Width3.8 in.
    Height1.5 in.
    ColorSilver
    TypeAuto Switching SMPS
    StyleMultiple Output
    Output Voltage (Channel 1)5 VDC
    Output Current (Channel 1)7 A
    Output Voltage (Channel 2)15 VDC
    Output Current (Channel 2)2.5 A
    Output Voltage (Channel 3)-5 VDC
    Output Current (Channel 3)0.5 A
    Output Voltage (Channel 4)-15 VDC
    Output Current (Channel 4)0.5 A
    ComplianceCompliance Docs
