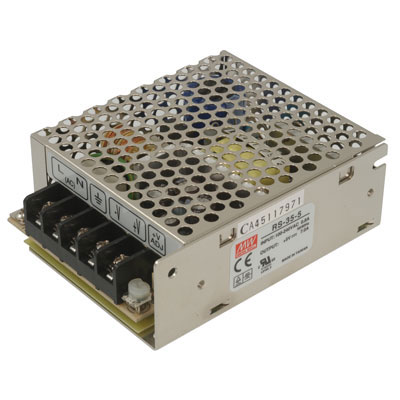

MEAN WELL RS-35-12 AC to DC Enclosed Single Output Power Supply

MEAN WELL Rohs logo
RS-35-12 Enclosed-Single Output

View larger image

  • AC to DC Power Supply Single Output 12 Volt 3 Amp 36 Watt
  • Jameco Part no.: 323337
  • Manufacturer: MEAN WELL
  • Manufacturer p/n: RS-35-12
  • HTS code: 8504.40.9510

$$ Lowest Prices on MEAN WELL

You May Also Like
DRL-01 DRL-01
MEAN WELL
$0.52
LRS-35-12 LRS-35-12
MEAN WELL
$11.20
RS-25-12 RS-25-12
MEAN WELL
$10.80
RS-50-12 RS-50-12
MEAN WELL
$15.20
RS-75-12 RS-75-12
MEAN WELL
$18.20
RS-100-12 RS-100-12
MEAN WELL
$24.50
RS-150-12 RS-150-12
MEAN WELL
$26.40
SE-600-12 SE-600-12
MEAN WELL
$115.95

$13.70 ea

20 In Stock
40 ship on Dec. 18

*This product is subject to a tariff. See detail in the cart.

+ Add to my favorites
# of units Price
1+ $13.70
5+ $13.00
10+ $12.50
20+ $12.10

Request Larger Quantity Quote

36W AC/DC ENCLOSED SWITCHING POWER SUPPLY

12Volts @ 3Amps

Specifications:
  • Size (L x W x H) (inches): 3.9 x 3.2 x 1.4
  • Ripple and Noise (mV p-p): 120
  • Load Regulation: 0.5%
  • Line Regulation: 0.5%
  • Input: 88-264VAC @ 47-63Hz
  • 5G Vibration
  • Able to withstand 300VAC surge input for 5 seconds
  • Short-circuit/overload/overvoltage protection
  • 3-year warranty
  • Certifications: UL/CUL/TUV/CE/CB



Report a problem
Suggest a product
Specification Value
Output Voltage12 VDC
Output Current3 A
Input Voltage88 VAC to 264 VAC
Input Frequency47 Hz to 63 Hz
Output Connector TypeScrew Terminal Block
Length3.9 in.
Width3.2 in.
Height1.4 in.
PFC FunctionNo
Agency ApprovalsUL, CUL, TUV, CB, CE, EN, EAC
Maximum Input Current0.8 A
Number of Outputs1
Power Rating36 W
Efficiency81%
Manufacturer SeriesRS-35
Minimum Operating Temperature-25°C
Maximum Operating Temperature70°C
Minimum Isolation Voltage3000V
ColorSilver
TypeAuto Switching SMPS
StyleEnclosed
Output Voltage (Channel 1)12 VDC
Output Current (Channel 1)3 A
ComplianceCompliance Docs
