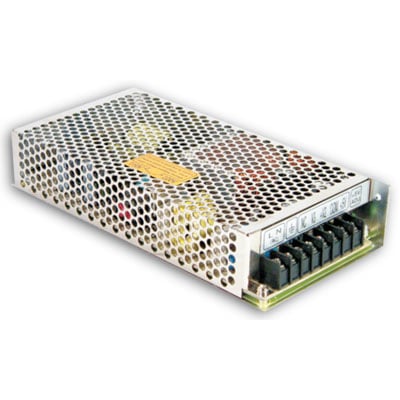

MEAN WELL RT-125C AC to DC Switching Enclosed Multiple Output Power Supplies

MEAN WELL Rohs logo
RT-125C Enclosed-Multiple Output

View larger image

  • AC to DC Power Supply Triple Output 5 Volt 15 Volt 15 Volt 15 Amp 6 Amp 1 Amp 132.5 Watt
  • Jameco Part no.: 323783
  • Manufacturer: MEAN WELL
  • Manufacturer p/n: RT-125C
  • HTS code: 8504.40.9520

$$ Lowest Prices on MEAN WELL

You May Also Like
QP-150-3B QP-150-3B
MEAN WELL
$97.90
QP-150F QP-150F
MEAN WELL
$97.90
QP-150D QP-150D
MEAN WELL
$97.90
QP-200-3B QP-200-3B
MEAN WELL
$111.95
QP-200D QP-200D
MEAN WELL
$111.95
ADS-15524 ADS-15524
MEAN WELL
$73.30

$34.80 ea

9 In Stock
9 ship on Dec. 18

*This product is subject to a tariff. See detail in the cart.

+ Add to my favorites
# of units Price
1+ $34.80
5+ $33.10
10+ $31.70
20+ $30.70

Request Larger Quantity Quote

132.5W AC/DC ENCLOSED SWITCHING POWER SUPPLY

+5Volts @ 10Amps (Channel 1)
+15Volts @ 4.5Amps (Channel 2)
-15Volts @ 1Amp (Channel 3)

Specifications:

  • Size (L x W x H) (inches): 7.8 x 3.9 x 1.5
  • Ripple and Noise (mV p-p): 80
  • Load Regulation: 1.0%
  • Line Regulation: 0.5%
  • Input: 88-264VAC @ 47-63Hz
  • 5G Vibration
  • Able to withstand 300VAC surge input for 5 seconds
  • Short-circuit/overload/overvoltage protection
  • 3-year warranty
  • Certifications: UL/CUL/TUV/CE/CB



Report a problem
Suggest a product
Specification Value
Output Voltage5 VDC
Output Current10 A
Power Rating132.5 W
Manufacturer SeriesRT-125
Additional Output Voltages (VDC)15, -15
Input Voltage88 VAC to 264 VAC
Efficiency81%
Input Frequency47 Hz to 63 Hz
Maximum Input Current3 A
Output Connector TypeScrew Terminal Block
Number of Outputs3
Product TypeAC to DC Power Supply
Agency ApprovalsUL, CUL, TUV, CB, CE, EN, EAC
Minimum Isolation Voltage3000V
Minimum Operating Temperature-25°C
Maximum Operating Temperature70°C
Length7.8 in.
Width3.9 in.
Height1.5 in.
ColorSilver
TypeSwitch Selectable SMPS
StyleMultiple Output
Output Voltage (Channel 1)5 VDC
Output Current (Channel 1)10 A
Output Voltage (Channel 2)15 VDC
Output Current (Channel 2)4.5 A
Output Voltage (Channel 3)-15 VDC
Output Current (Channel 3)1 A
