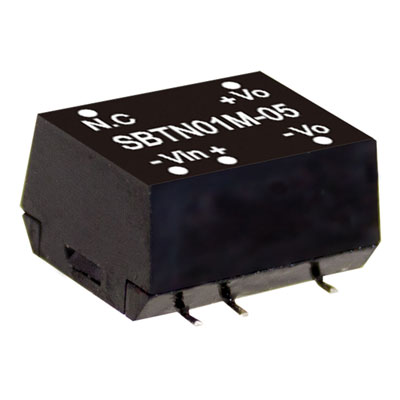

MEAN WELL SBTN01N-05 Enclosed DC to DC Isolated

MEAN WELL Rohs logo
SBTN01N-05 Enclosed

View larger image

  • 5V 20-200mA 1W SMD Package DC-DC Unregulated Converter 24Vin
  • Jameco Part no.: 2256421
  • Manufacturer: MEAN WELL
  • Manufacturer p/n: SBTN01N-05
  • NCNR (Non-Cancelable, Non-Returnable)
  • HTS code: 8504.40.9510

$$ Lowest Prices on MEAN WELL

You May Also Like
SKE15A-05 SKE15A-05
MEAN WELL
$19.55
SD-25B-5 SD-25B-5
MEAN WELL
$26.20
SRS-0505 SRS-0505
MEAN WELL
$5.15
SLW05C-05 SLW05C-05
MEAN WELL
$14.15
SKE15B-05 SKE15B-05
MEAN WELL
$19.55
SLW05A-05 SLW05A-05
MEAN WELL
$14.15

$4.15 ea

3 Weeks Lead Time

*This product is subject to a tariff. See detail in the cart.

+ Add to my favorites
# of units Price
38+ $4.15
152+ $3.89
608+ $3.69

Request Larger Quantity Quote

NOTE:
  • Order in multiples of 38

5V 20-200mA 1W SMD Package DC-DC Unregulated Converter 24Vin

Features

  • SMD package with industry standard pinout
  • Operating temperature range: -40 to +90°C
  • Compliant to EN55032 radiated Class B without additional components
  • High efficiency up to 77%
  • Protection: Short circuit
  • 1.5KVDC I/O isolation
  • Low cost
  • 3 year warranty

Specifications

  • Output voltage: 5 VDC
  • Output current: 20 to 200 mA
  • Input voltage (range): 24 V (21.6 to 26.4 V)
  • Input current: 11 mA (no load), 54 mA (full load)

Applications

  • Telecom and Datacom systems
  • Wireless network
  • Industrial control facility
  • Instrument
  • Analyzer
  • Detector
  • Data switch


Report a problem
Suggest a product
Specification Value
Number of Outputs1
Output Voltage5 VDC
Additional Output Voltages (VDC)N/A
Output Current0.20 A
Input Voltage Range21.6 VDC to 26.4 VDC
Output Connector TypeSMD
PackageSMD
Power Rating1 W
Manufacturer SeriesSBTN01
Product TypeDC to DC Unregulated Single Output Converter SMPS
Efficiency77%
Minimum Operating Temperature-40°C
Maximum Operating Temperature90°C
Pins8
Length0.5 in.
Width0.43 in.
Height0.28 in.
ColorBlack
MountingSurface Mount
ComplianceCompliance Docs
