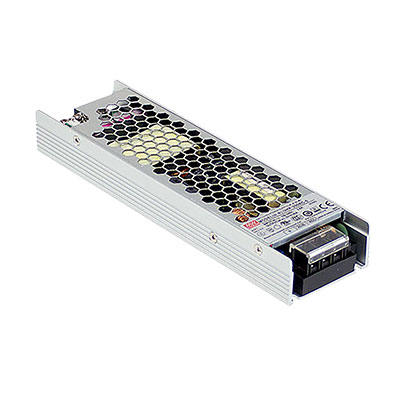

Slim-type Switching Power Supply 200W PFC 55V 3.6A with DC OK Signal and Redundant Function
Features
Slim and low profile (26mm)
Fanless design, 200W convection
Withstand 300VAC surge input for 5 seconds
Built-in active PFC function
-30C to +70C working temperature
Protections: short circuit, overload, over voltage, over temperature
DC OK active signal and redundant function (optional)
Operating altitude up to 5000 meters
LED indicator for power on
3-year warranty
Overview
UHP-200 series is a 200W single-output slim type power supply with 26mm of low profile design. Adopting the fill range 90-264VAC input, the entire series provides an output voltage line of 3.3V, 4.2V, 5V, 12V, 15V, 24V, 36V, 48V, and 55V. In addition to the high efficiency up to 94%, the whole series operates from -30C to +70C under free air convection without a fan. UHP-200 has the complete protection functions and 5G anti-vibration capability; It is compliant with the international safety regulations such as TUV BS EN/EN62368-1, BS EN/EN60335-1, UL 62368-1 and GB 4943.1. UHP-200 series serves as a high performance power supply solution for various industrial applications.
