Yingjiao YS18-0503500M-D1J Medical AC to DC Wall Adapters

Yingjiao Rohs logo
YS18-0503500M-D1J Wall Adapters

View larger image

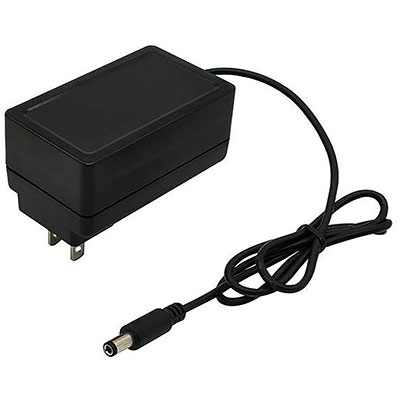

  • Medical-Rated Wall Mount Power Adapter 15W 5V 3A 2.1x5.5x11mm Plug UL
  • Jameco Part no.: 2747127
  • Manufacturer: Yingjiao
  • Manufacturer p/n: YS18-0503500M-D1J
  • NCNR (Non-Cancelable, Non-Returnable)
You May Also Like
ADS0051-W050080 ADS0051-W050080
Jameco ReliaPro
$6.95
SPS-054000D SPS-054000D
MG Electronics
$9.00
KSAS0180500300VU-VI KSAS0180500300VU-VI
Jameco ReliaPro
$9.95
SGA40U05-P1J SGA40U05-P1J
MEAN WELL
$22.45
SGA40U18-P1J SGA40U18-P1J
MEAN WELL
$22.45
SGA40U24-P1J SGA40U24-P1J
MEAN WELL
$22.45

$6.35 ea

18 Weeks Lead Time

*This product is subject to a tariff. See detail in the cart.

+ Add to my favorites
# of units Price
300+ $6.35
500+ $6.15

Request Larger Quantity Quote

NOTE:
  • Order in multiples of 300

Medical-Rated Wall Mount Power Adapter 15W 5V 3A 2.1x5.5x11mm Plug UL

Features

  • Universal AC input/ Full range
  • Energy efficiency level VI
  • Leakage Current: <0.1 mA
  • Extremely low leakage current
  • Protection: Over load, Over voltage, Short circuit
  • Withstand voltage: 4KV
  • Life Warranty: 3 years
  • Medical rated, 2xMOPP

Applications

  • Digital equipment
  • Blood pressure monitor
  • Nebulizer
  • Portable medical device

Overview

Medical-Rated Wall Mount Power Adapter 15W 5V 3A 2.1x5.5x11mm Plug UL.



Report a problem
Suggest a product
Specification Value
Output Voltage5 VDC
Output Current3 A
Input Voltage85 VAC to 265 VAC
Input Frequency50 Hz to 60 Hz
Output Connector TypeCylindrical Female
Output Connector Diameters2.1mm x 5.5mm
PolarityCenter Positive
Agency ApprovalsUL, CUL, CB, FCC
Input ConnectorNEMA 1-15P
Output Cord Length5 ft.
Power Rating15 W
Manufacturer SeriesYS18UM
Maximum Input Current0.7 A
Number of Outputs1
Efficiency80%
Minimum Operating Temperature-20°C
Maximum Operating Temperature60°C
ColorBlack
Product TypeSwitching SMPS
StyleWall Mount
Product NoteLevel VI
AC Power CordN/A
Length3.07 in.
Width1.81 in.
Height1.42 in.
ComplianceCompliance Docs
