MEAN WELL A301-1K7-F3 DC to AC Power Inverters

MEAN WELL Rohs logo

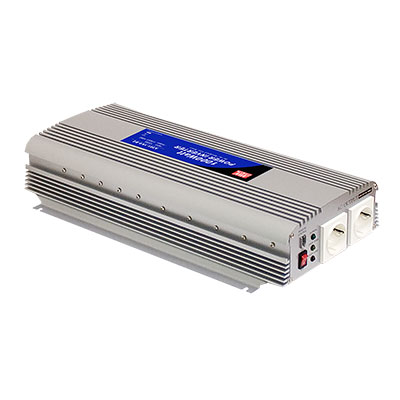

A301-1K7-F3 DC to AC Power Inverters

View larger image

  • Modified Sine Wave DC-AC Power Inverter 1500W 230VAC Output 2xEURO Receptacle 12VDC 170A Ring Terminal Input
  • Jameco Part no.: 2678863
  • Manufacturer: MEAN WELL
  • Manufacturer p/n: A301-1K7-F3
  • NCNR (Non-Cancelable, Non-Returnable)

$$ Lowest Prices on MEAN WELL

You May Also Like
A301-150-B2 A301-150-B2
MEAN WELL
$47.95
TS-1500-112A TS-1500-112A
MEAN WELL
$542.95
TN-1500-112A TN-1500-112A
MEAN WELL
$532.95
TN-1500-124A TN-1500-124A
MEAN WELL
$532.95
TN-1500-148A TN-1500-148A
MEAN WELL
$532.95
TN-1500-212B TN-1500-212B
MEAN WELL
$532.95

$357.95 ea

14 Weeks Lead Time

*This product is subject to a tariff. See detail in the cart.

+ Add to my favorites
# of units Price
1+ $357.95
5+ $335.95
25+ $315.95

Request Larger Quantity Quote

Modified Sine Wave DC-AC Power Inverter 1500W 230VAC Output 2xEURO Receptacle 12VDC 170A Ring Terminal Input

Features

  • 12V or 24V DC input (depending on the model)
  • Power ON-OFF switch
  • Input voltage range: -15% to +25%
  • Output voltage regulation: ±10%
  • Protections: Input reverse polarity, battery low alarm, batterl low shutdown, over voltage, over load, over temperature, output short
  • Output waveform: Modified sine wave
  • Cooling fan ON-OFF control
  • ON/OFF remote control (optional/order no: RC-1700)
  • Approvals: E13, EAC, CE, UKCA
  • 1 year warranty


Report a problem
Suggest a product
Specification Value
Output Voltage230 VAC
Output CurrentN/A
Power Rating1500 W
AC Power CordNot Included
Manufacturer SeriesA301-1K7
Input Voltage Range10 VDC to 16.5 VDC
Input Voltage12 VDC
Input FrequencyN/A
Maximum Input Current170 A
Output Connector TypeEuro Receptacle x2
Number of Outputs2
Product TypeModified Sine Wave DC-AC Power Inverter
Efficiency82%
MountingChassis
Minimum Operating Temperature0°C
Maximum Operating Temperature30°C
Length17.91 in.
Width8.27 in.
Height3.35 in.
Agency ApprovalsCE, EN, EAC, UKCA, E13
ColorSilver
ComplianceCompliance Docs
