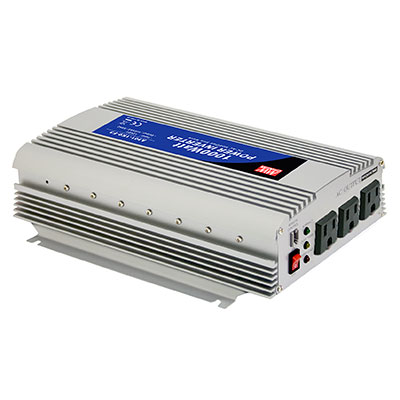

1000W Modified Sine Wave DC-AC Power Inverter 110 VAC Out 24VDC 55A Input NEMA 5-15R
Jameco Part no.: 2250943
Manufacturer: MEAN WELL
Manufacturer p/n: A302-1K0-B2
NCNR (Non-Cancelable, Non-Returnable)
HTS code: 8504.40.9510

$$ Lowest Prices on MEAN WELL

$247.95 ea

*This product is subject to a tariff. See detail in the cart.

Output: 110 VAC, 1000 Watts, NEMA 5-15R (x3)
Input: 24 Volts DC @ 55 Amps

24 VDC input
Power ON-OFF switch
Input voltage range: -15% to +25%
Protections: Battery low alarm, battery low shutdown, over voltage, over temperature, output short, input polarity reverse, over load
Output waveform: Modified sine wave
Cooling fan ON-OFF control
Approvals: E13, EAC, CE
1 year warranty
Standard receptacles: Type-2 (NEMA 5-15R) x3

Specification	Value
Output Voltage	110 VAC
Output Current	N/A
Power Rating	1000 W
AC Power Cord	Not Included
Manufacturer Series	A302-1K0
Input Voltage Range	10 VDC to 15 VDC
Input Voltage	12 VDC
Input Frequency	N/A
Maximum Input Current	110 A
Output Connector Type	NEMA 5-15R x3
Number of Outputs	3
Product Type	Modified Sine Wave DC-AC Power Inverter
Efficiency	85%
Mounting	Chassis
Minimum Operating Temperature	0°C
Maximum Operating Temperature	30°C
Length	12.20 in.
Width	8.27 in.
Height	3.35 in.
Agency Approvals	CE, EN, EAC, UKCA, E13
Color	Silver
Compliance	Compliance Docs
