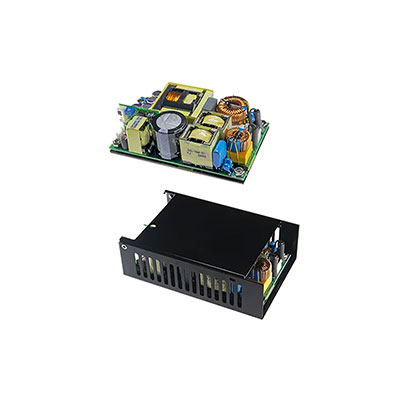

Cincon CFM500S300-PM AC to DC Switching Open Frame Power Supplies

Open Frame 500W AC-DC Power Supply with Baseplate 30V 12.67A to 16.67A PFC 5Vsb 12V Fan Output

Features

• Efficiency up to 94.5%
• Universal input range: 80-264VAC
• 3"x5" compact size
• Class I
• No load power consumption <0.5W
• Peak power operation up to 600 watts for 5s
• Approval IEC/EN/UL 62368-1
• Approval EN 55032, 47 CFR FCC Part 15
• Active PFC meets EN 61000-3-2
• Design meets IEC/EN 60335-1
• Operating altitude 5000m
• High power density up to 21.64W/cubic inch
• 390W natural, 470W-500W conduction convection
• Over temperature protection
• PS ON/OFF remote control
• Power good & power fail signal
• +5V stand by, 12V fan output
• Low inrush current
• Parallel operation option available (active current sharing)(model# suffix: "-PC")
• PMBus option included (model# suffix: "-PM")

Overview

Open Frame 500W AC-DC Power Supply with Baseplate 30V 12.67A to 16.67A (when fan cooling is used) with PFC 5Vsb 12V Fan Output and PMBus option included.
