Clearance

$71.30 ea

25% discount applied in cart

33 In Stock
More Available – 7 days

TARIFF FREE PRODUCT

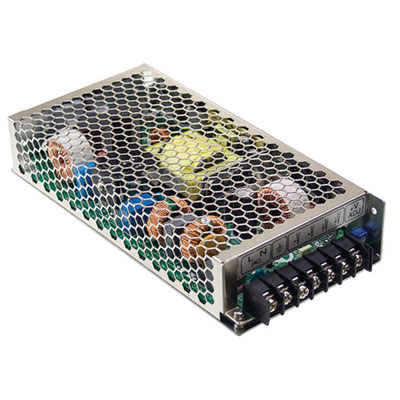

  • Jameco Part no.: 2122239
  • Manufacturer: MEAN WELL
  • Manufacturer no.: HRP-200-12
  • HTS code: 8504406012
  • Electronics Parts Locator
# of units Price
1+ $71.30
5+ $64.90
25+ $44.95

Request a Large Quantity Quote

200.4 W Single Output with PFC Function


12 Volts @ 16.7 Amps

Features:
  • Universal AC input / Full range
  • Built-in active PFC function, PF>0.95
  • High efficiency up to 88%
  • Protections: Short circuit / Overload / Over voltage / Over temperature
  • 5 years warranty
  • Withstand 300VAC surge input for 5 seconds
  • Cooling by free air convection
  • Built-in constant current limiting circuit
  • 1U low profile 38mm
  • Built-in remote sense function



Report a problem
Suggest a product
Specification Value
Output Voltage12 VDC
Output Current16.70 A
Input Voltage85 VAC to 264 VAC
Input Frequency47 Hz to 63 Hz
Output Connector TypeScrew Terminal Block
Length7.8 in.
Width3.9 in.
Height1.5 in.
PFC FunctionYes
Agency ApprovalsUL, CUL, TUV, CB, CE, EN, EAC
Maximum Input Current2.2 A
Number of Outputs1
Power Rating200.4 W
Efficiency88%
FamilyHRP-200
Minimum Operating Temperature-40°C
Maximum Operating Temperature70°C
Minimum Isolation Voltage3000V
ColorSilver
TypeSwitching
StyleEnclosed
Output Voltage (Channel 1)12 VDC
Output Current (Channel 1)16.7 A
