Rectifier Kit - PSU Parts and Wiring for JE301 Amp Power Supply (Part 2 of 4)
Our "à la carte" approach gives you the freedom to design a project that is exclusively yours, unlike standard kits that provide a predetermined collection of items. Just pick what you'll need from the list of four primary components below. (This kit is item #2). In this manner, you only receive - and pay for - just the components you require to realize your vision. If you already have a compatible split rail power supply, or want to use your own rectification circuit, you may skip those items.
Metal enclosure. We recommend aluminum for heat sinking. 8"W x 6"D x 4"H minimum recommended for EI-core transformers. See list of compatible enclosures. Toroidal transformers will need a little more room.
Features
Designed for use with the JE301 Amplifier Kit (P/N: 2317775).
Builds a full bridge rectifier circuit with filter capacitors for a split positive and negative output
Requires a center-tapped/dual secondary transformer 20 VCT to 44 VCT, (not included)
(for the transformer, we recommend 36 VCT 100VA)
Over $48 value!
Kit Includes
AC receptacle with switch and replaceable fuse
AC power cord
bridge rectifier rated for 12A and 800V (more than enough for this project)
red power LED
filter capacitors

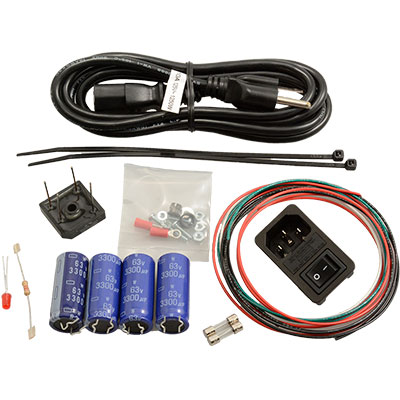

hook-up wire (black, white, green and red)
and mounting hardware
Overview
The rectification kit contains over $48 in value of electronics parts. This bundle is designed for the JE301 Fisher 60W Dual Mono Amplifier project. Pick up the JE301 Amp kit (P/N: 2317775) containing the audio components like ICs, capacitors, PCB, gold-plated input and output connectors, volume pot and knob, shielded wiring, stranded hook-up wiring and mounting hardware. Then you choose a transformer and enclosure to complete the amp build.
Our "à la carte" approach to the amplifier project gives you the freedom to design a project that is exclusively yours, unlike standard kits that provide a predetermined collection of items. Just pick what you'll need from the list of four primary components. (This kit is item #2). This way, you only receive - and pay for - the components you need to complete your unique amplifier.
