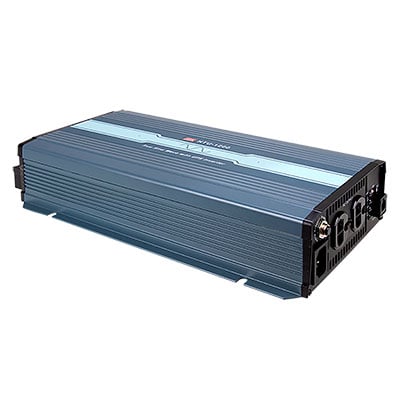

MEAN WELL NTU-1200-148US DC to AC Power Inverters

110VAC Output 1200W True Sine Wave DC-AC Power Inverter NEMA 5-15R 48VDC 30A Input with Built-in UPS Function

Features

• Built-in UPS function (AC by-pass)
• True sine wave output (THD <3%)
• High surge power up to 2000W
• Temperature controlled cooling fan
• AC output voltage and frequency selectable by DIP switch
• -25°C to +70°C wide operating temperature
• Power ON-OFF remote control
• Front panel indicator for operation status
• Protections:
  • Input: Reverse polarity, DC low alarm, DC low shutdown, Over voltage
  • Output: Short circuit, Overload, Over temperature
• Battery over discharge protection (low voltage disconnect)
• Suitable for lead-acid or li-ion batteries
• Remote controller (IRC1, IRC2, IRC3 accessory sold separately, see datasheet)
• Support RS-232 communication (Communication cable order no.: DS-RJ11-RS232, sold separately)
• Conformal coating
• 3-year warranty

Specifications

• Rated Power: 1200 W; 1380 W (over rated power, 3 min.); 1800 W (peak power, 10 sec.); 2000 W (surge power, 30 cycles)
• AC Voltage: 100 / 110 / 115 / 120 VAC, selectable by DIP switch (110VAC is default)
• Frequency: 50 / 60 Hz, selectable by DIP switch (60 Hz is default)
• Output Connection: NEMA 5-15R Receptacle

• DC Voltage: 48 VDC
• Voltage Range (typ.): 40 VDC to 66 VDC
• DC Current: 30 A
• Efficiency: 91%
• Battery Types: Lead Acid or Li-Ion
• Size: 13.11"L x 7.24"W x 2.76"H (333 x 184 x 70mm)
• Agency Approvals: CB, CE, FCC, EN, EAC, UKCA, Dekra, C-Tick

Applications

• Mobile device
• Home and office appliance
• Portable equipment
• Power tools
• Vehicle
• RV
• Yacht
• Off-grid solar power system
• Wireless network
• Telecom or datacom system
