$21.95 ea

5 Days Lead Time

*This product is subject to a tariff.
See detail in the cart.


  • Jameco Part no.: 2105842
  • Manufacturer: MEAN WELL
  • Manufacturer no.: PSC-60B
  • NCNR (Non-Cancelable, Non Returnable)
  • HTS code: 8504409510
  • Web Exclusive
# of units Price
1+ $21.95
5+ $19.95
25+ $17.95

Request a Large Quantity Quote

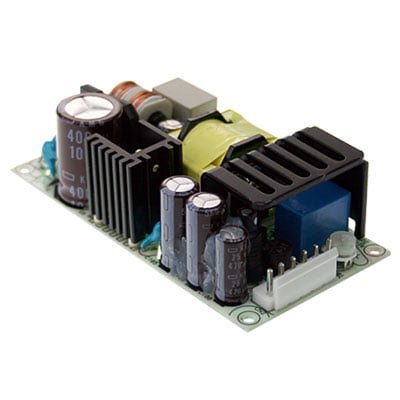

60W Single Output with Battery Charger(UPS Function)


CH1: 27.6 Volts @ 1.4 Amps
CH2: 27.6 Volts @ 0.75 Amps

Features:
  • Universal AC input / Full range
  • Protections: Short circuit / Overload / Over voltage
  • Battery low protection / Battery polarity protection by fuse
  • Alarm signal for AC OK and Battery low
  • Cooling by free air convection
  • 100% full load burn-in test
  • 2 years warranty


Report a problem
Suggest a product

Specification Value
Number of Outputs2
Output Voltage27.6 VDC
Output Current2.15 A
Additional Output Voltages (VDC)27.6
Input Voltage90 VAC to 264 VAC
Input Frequency47 Hz to 63 Hz
Output Connector TypeJST B6P-VH or equiv.
PFC FunctionNo
Agency ApprovalsUL, CUL, TUV, CB, CE, EN, EAC
Efficiency84%
FamilyPSC-60
Power Rating59.34 W
Maximum Input Current1.6 A
Minimum Operating Temperature-20°C
Maximum Operating Temperature70°C
Minimum Isolation Voltage3000V
SwitchingAuto Switching
StyleOpen Frame
Length4 in.
Width2 in.
Height1.1 in.
