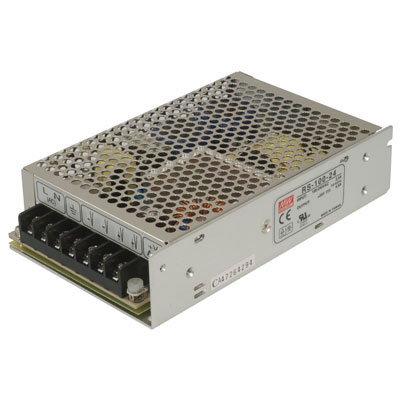

MEAN WELL RS-100-48 AC to DC Enclosed Single Output Power Supply

MEAN WELL Rohs logo
RS-100-48 Enclosed-Single Output

View larger image

  • AC to DC Power Supply Single Output 48 Volt 2.3 Amp 110.4 Watt
  • Jameco Part no.: 693290
  • Manufacturer: MEAN WELL
  • Manufacturer p/n: RS-100-48
  • NCNR (Non-Cancelable, Non-Returnable)
  • HTS code: 8504.40.9520

$$ Lowest Prices on MEAN WELL

You May Also Like
LRS-100-48 LRS-100-48
MEAN WELL
$16.20
SE-600-48 SE-600-48
MEAN WELL
$106.95
RS-150-48 RS-150-48
MEAN WELL
$26.40
PSP-600-48 PSP-600-48
MEAN WELL
$147.30
RS-25-48 RS-25-48
MEAN WELL
$10.80
RS-35-48 RS-35-48
MEAN WELL
$13.70
RS-50-48 RS-50-48
MEAN WELL
$15.20

$24.50 ea

14 Weeks Lead Time

*This product is subject to a tariff. See detail in the cart.

+ Add to my favorites
# of units Price
1+ $24.50
5+ $23.30
10+ $22.30
20+ $21.70

Request Larger Quantity Quote

100W Single Output Switching Power Supply


Output: 48 Volts @ 2.3 Amps

Features:

  • Universal AC input / Full range
  • Protections:Short circuit/Over load/Over voltage
  • Cooling by free air convection
  • LED indicator for power on
  • 100% full load burn-in test
  • All using 105°C long life electrolytic capacitors
  • Withstand 300VAC surge input for 5 second
  • High operating temperature up to 70°C
  • Withstand 5G vibration test
  • High efficiency, long life and high reliability
  • 3 years warranty

    Report a problem
    Suggest a product
    • Specification Value
    Output Voltage48 VDC
    Output Current2.30 A
    Input Voltage88 VAC to 264 VAC
    Input Frequency47 Hz to 63 Hz
    Output Connector TypeScrew Terminal Block
    Length6.3 in.
    Width3.8 in.
    Height1.5 in.
    PFC FunctionNo
    Agency ApprovalsUL, CUL, TUV, CB, CE, EN, EAC
    Maximum Input Current2.5 A
    Number of Outputs1
    Power Rating110.4 W
    Efficiency84%
    Manufacturer SeriesRS-100
    Minimum Operating Temperature-25°C
    Maximum Operating Temperature70°C
    Minimum Isolation Voltage3000V
    ColorSilver
    TypeAuto Switching SMPS
    StyleEnclosed
    Output Voltage (Channel 1)48 VDC
    Output Current (Channel 1)2.3 A
    ComplianceCompliance Docs
